RH100.3208.33R
Toolholders
Material number RH100320833R

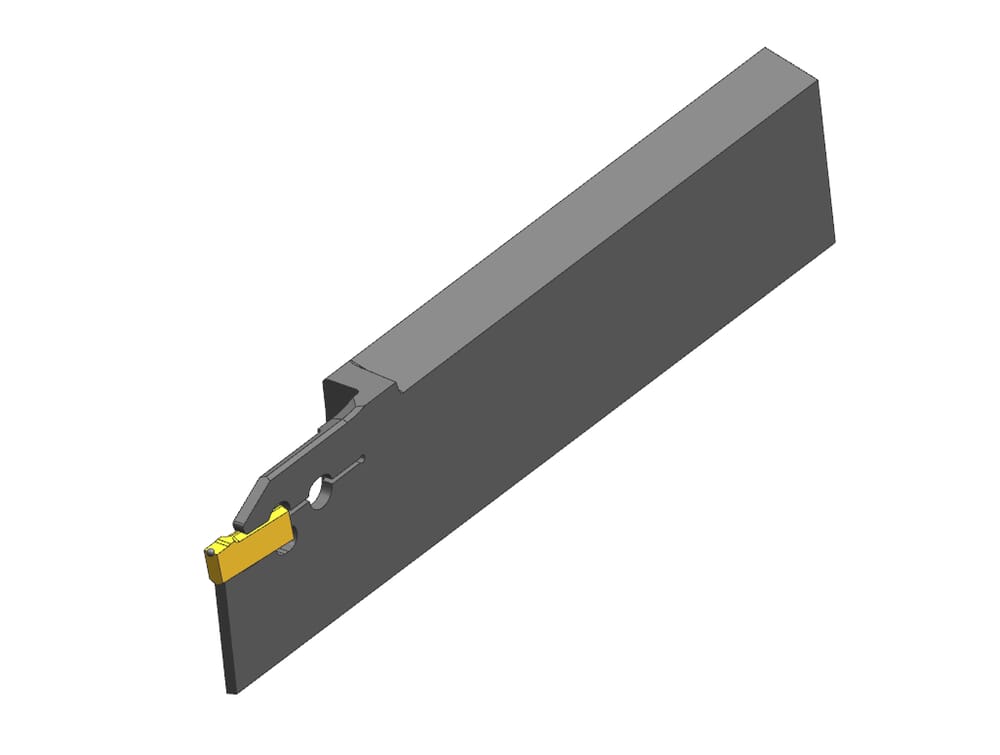

HORN Toolholders RH100.3208.33R for Turning
DIN_CCTWS
HORN-100030058N
Plating seat size (Größe)
3
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105
Katalog_CCTWS
100038
Width / thickness sword (b)
7.9 mm
ISO_CCTWS
HORN100030058N$$$$$
Peak height (h1)
24.8 mm
Maximum workpiece diameter (Dmax)
68 mm
Maximum insertion depth (tmax)
34 mm
Head height (h)
32 mm
Total length (including cutting insert) (l1)
112 mm
Adjustment dimension (f1)
6.75 mm
