RS114.0510.GM1 EG55

Insert

Material number RS1140510GM1EG55

HORN Insert RS114.0510.GM1 EG55 for Gewinden

On Request

Katalog_SSC

114090R

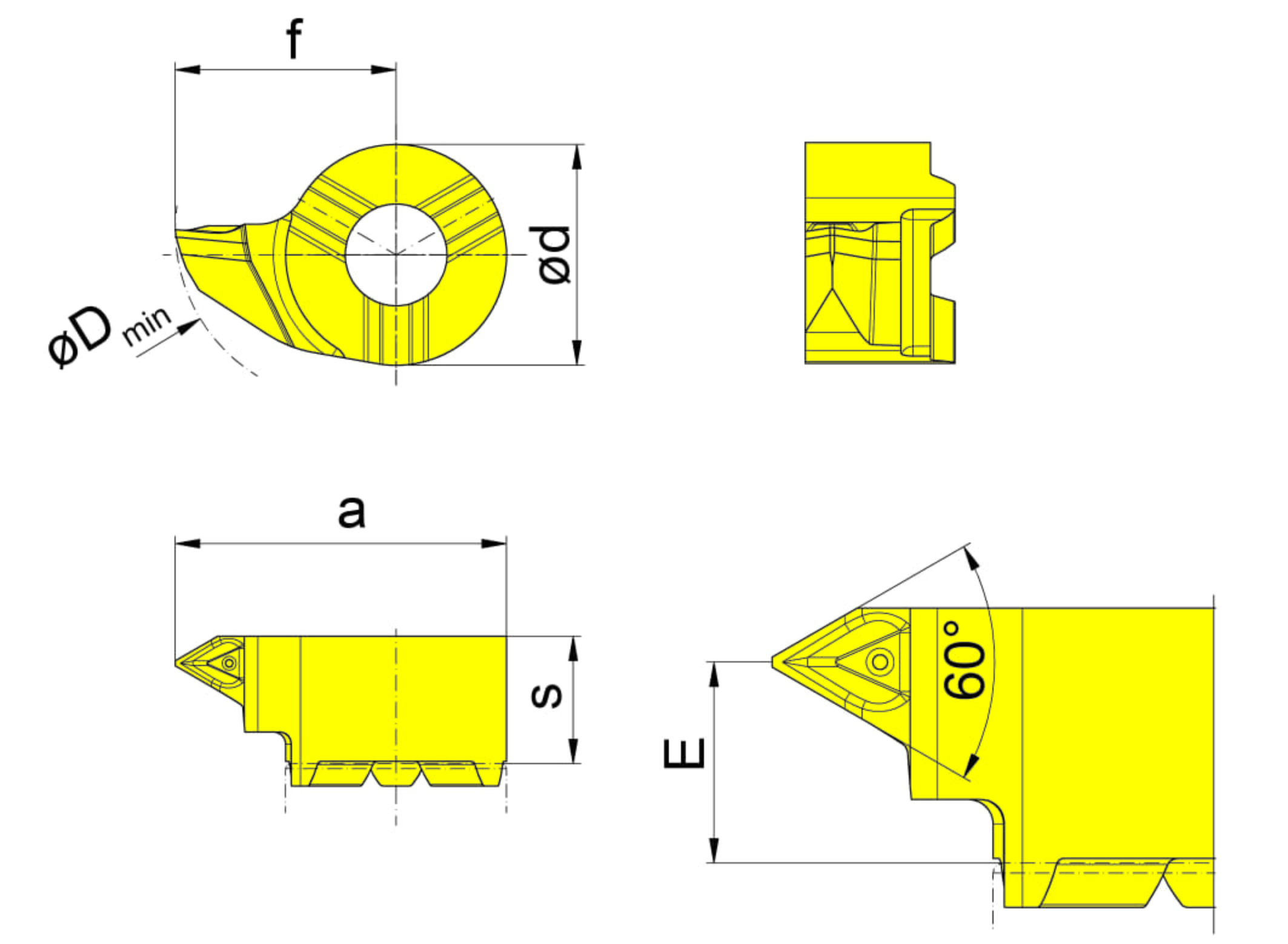

Maximum pitch (Pmax)

1.25 mm

Pitch (P)

1 mm

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.2 mm

Setting length (E)

4.1 mm

Tooth diameter, head diameter (d)

9 mm

Cutting insert width (a)

13.5 mm

Setting range radial (f)

9 mm

DIN_SSC

HORN-11409084R

ISO_SSC

HORN114090$84R$$$$$
