RS274.0080.03.10 TH35
Insert
Material number RS27400800310TH35

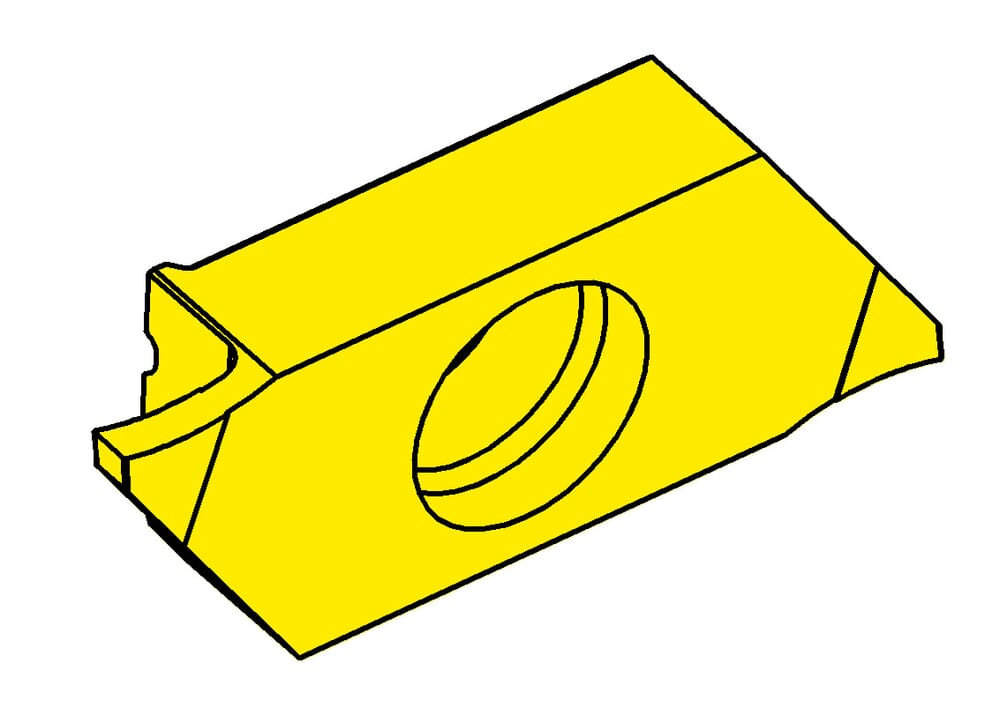

HORN Insert RS274.0080.03.10 TH35 for Turning
Maximum depth of groove (tmax)
3 mm
ISO_SSC
HORN274040000R$$$$$
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
0.8 mm
Corner radius (r)
0.05 mm
| Downloads | |
|---|---|
| RS274_0080_03_10_TH35-DXF.DXF | Download |
| RS274_0080_03_10_TH35-STP.STP | Download |
| RS274_0080_03_10_TH35-ISO.XML | Download |
| RS274_0080_03_10_TH35-DIN.XML | Download |
| Download all files | |
