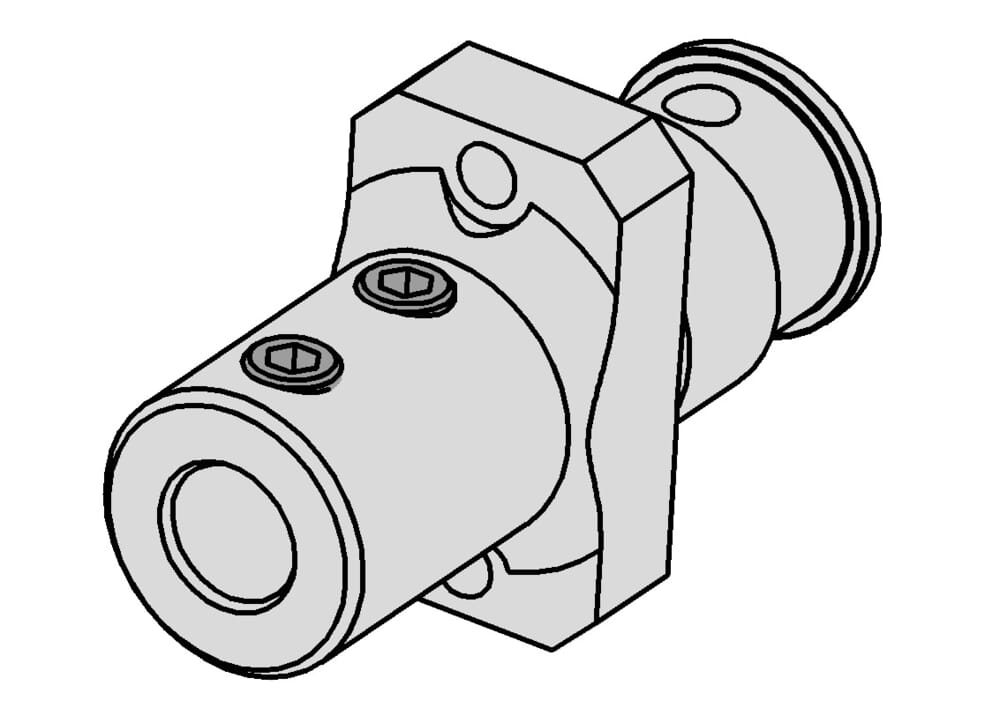

001C0251230IK_PICTO.TIF

001.C025.12.30IK

Toolholder

IK_GENERELL.EPS LOGO_CITIZEN.EPS INNEN_EINSTECHEN.EPS INNEN_BOHRUNG_AUSDREHEN.EPS

Material number 001C0251230IK

HORN Toolholder 001.C025.12.30IK for Turning

Technical instructions

Total length (without cutting insert) (l1)
75
Head length (l2)
35
Machine type (Maschinentyp)
Citizen L20X
Shank, clamping diameter (d)
25
Neck diameter (d1)
12 mm
Downloads
001C0251230IK.DXF Download
Download all files
