229.NC30.02 H20
Inserts
Material number 229NC3002H20

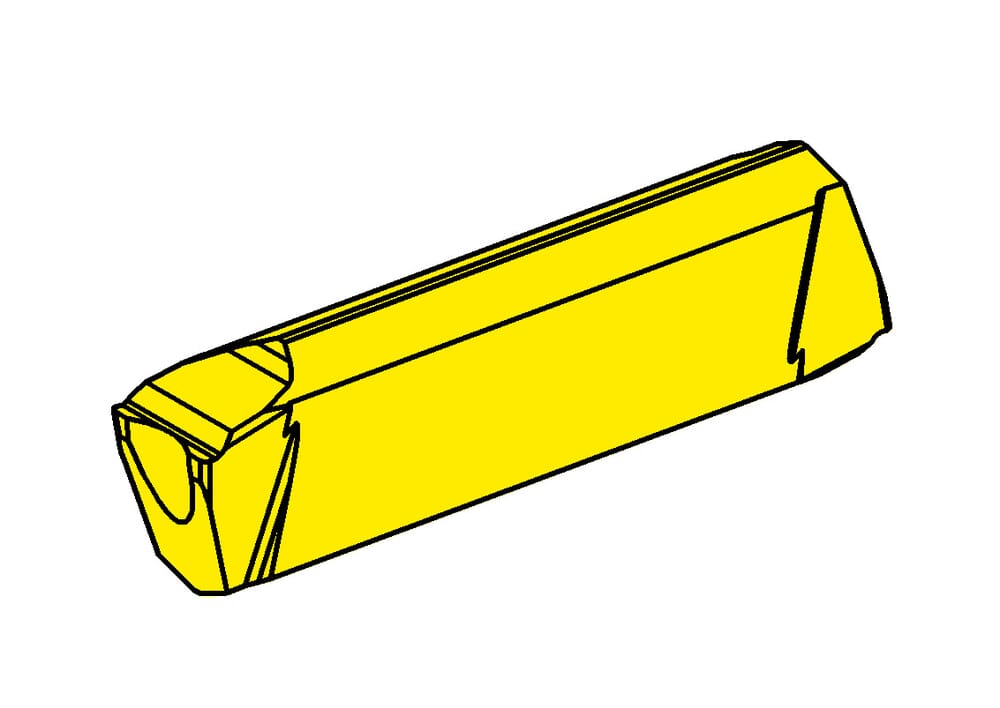

HORN Inserts 229.NC30.02 H20 for Turning
Minimum groove width (wx)
4.5
ISO_SSC
HORN229030108N$$$$$;HORN229040108N$$$$$
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4
Width of groove (w)
3 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| 229NC3002_20230112_154154186.STP | Download |
| 229NC3002_20210629_102113829.DXF | Download |
| Download all files | |
