306.0100.10.00 TA45

Insert

Material number 30601001000TA45

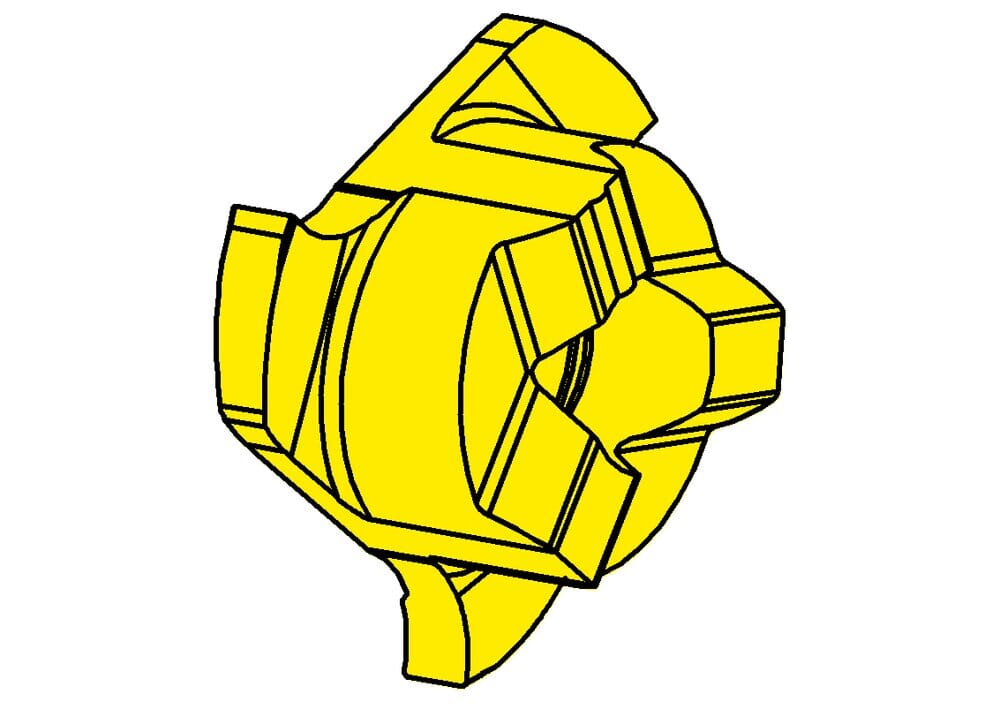

HORN Insert 306.0100.10.00 TA45 for Milling

Technical instructions

Cutting diameter (Ds)

9.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN306060$84R$$$$$

Katalog_SSC

306060R

Width of groove (w)

1.07 mm

Maximum milling depth/ depth of groove (tmax)

1.5 mm

Nominal range (Nw)

1 mm

Cutting insert thickness, setting length complete (s)

3.2 mm

Downloads
306_0100_10_00_TA45-ISO.XML	Download
306_0100_10_00_TA45-DXF.DXF	Download
306_0100_10_00_TA45-STP.STP	Download
306_0100_10_00_TA45-DIN.XML	Download
Download all files
