308.0130.00 TF45
Insert
Material number 308013000TF45

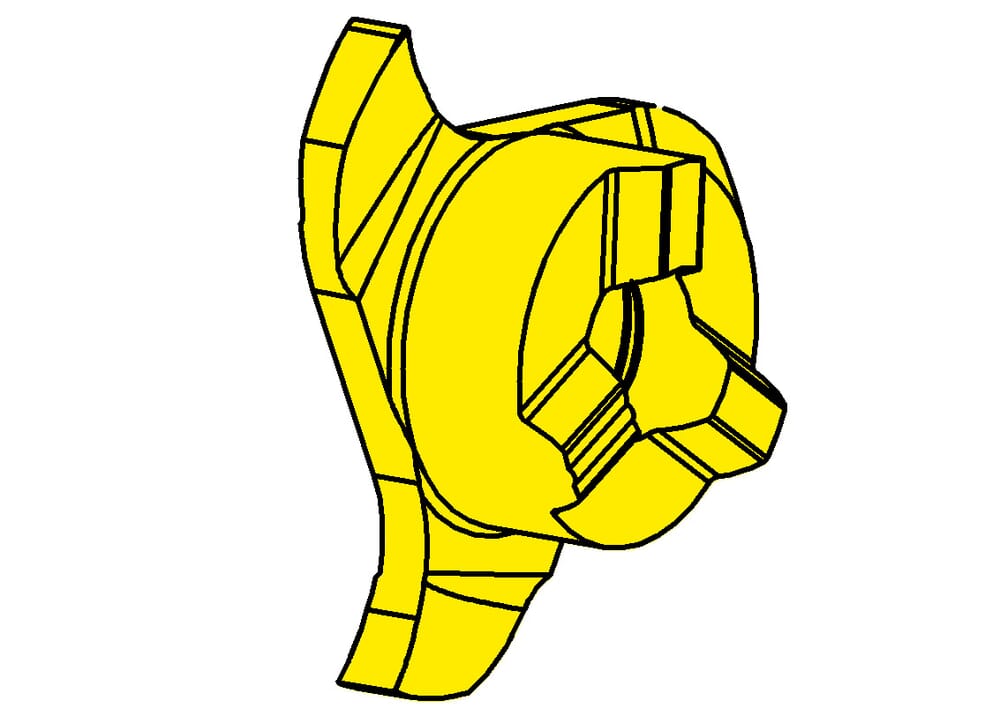

HORN Insert 308.0130.00 TF45 for Milling
Cutting diameter (Ds)
15.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Width of groove (w)
1.41
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Nominal range (Nw)
1.3
mm
Cutting insert thickness, setting length complete (s)
4.5
mm
| Downloads | |
|---|---|
| 308_0130_00_TF45-DXF.DXF | Download |
| 308_0130_00_TF45-STP.STP | Download |
| 308_0130_00_TF45-DIN.XML | Download |
| Download all files | |
