308.1307.30 AS45
Insert
Material number 308130730AS45

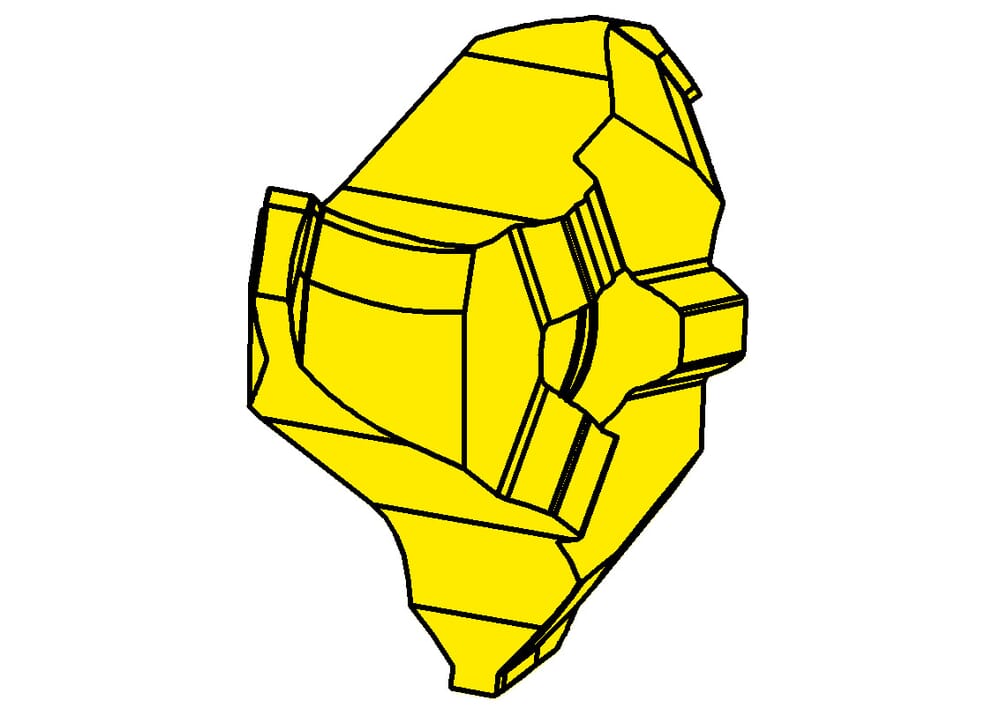

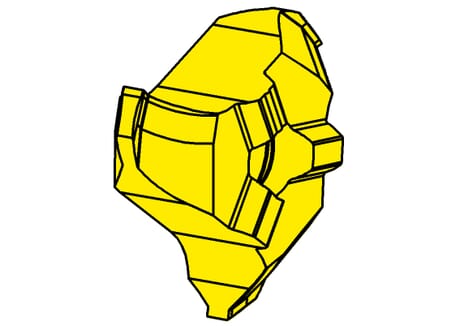

HORN Insert 308.1307.30 AS45 for Milling
Cutting diameter (Ds)
15.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Width of groove (w)
1.41
mm
Maximum milling depth/ depth of groove (tmax)
0.7
mm
Milling depth without NAKF (t1)
0.65
mm
Nominal range (Nw)
1.3
mm
Cutting insert thickness, setting length complete (s)
4.7
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
3.5
mm
| Downloads | |
|---|---|
| 308_1307_30_AS45-DIN.XML | Download |
| 308_1307_30_AS45-DXF.DXF | Download |
| 308_1307_30_AS45-STP.STP | Download |
| Download all files | |
