312.0020.40 EG52
Insert
Material number 312002040EG52

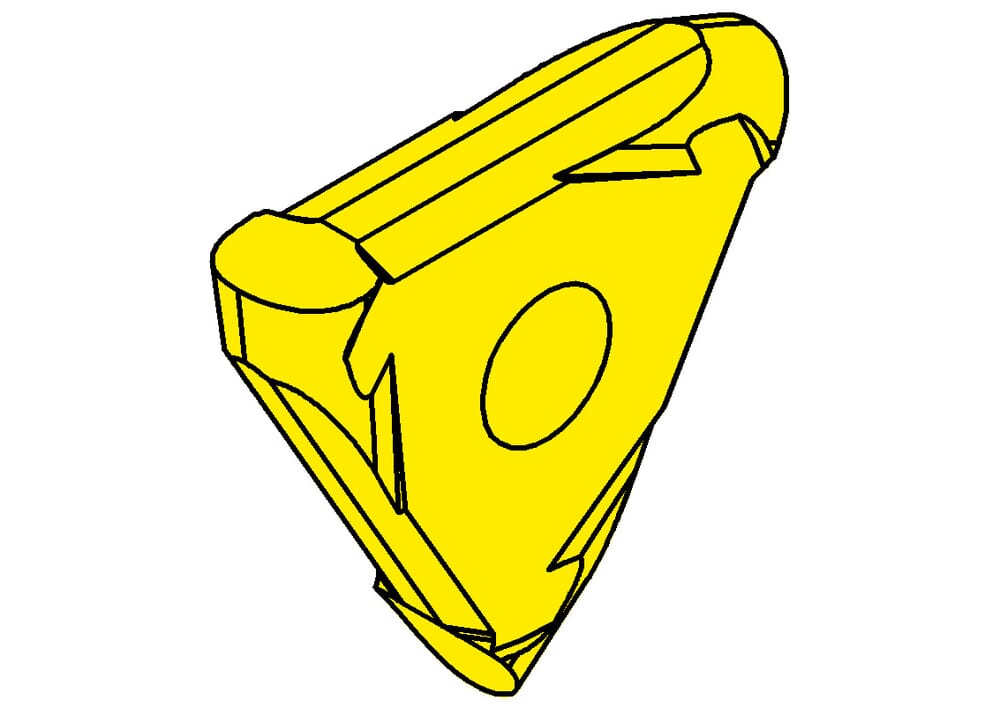

HORN Insert 312.0020.40 EG52 for Turning
Cancellation (a1)
0.2 mm
Free-throw width (t1)
1.2 mm
Full radius (r1)
2 mm
Smallest workpiece diameter (Dmin)
30 mm
ISO_SSC
HORN-31204$000N$$$$$
Katalog_SSC
31204N
Plating seat size (Größe)
4
Width of groove (w)
4 mm
| Downloads | |
|---|---|
| 312_0020_40_EG52-DXF.DXF | Download |
| 312_0020_40_EG52-STP.STP | Download |
| 312_0020_40_EG52-ISO.XML | Download |
| 312_0020_40_EG52-DIN.XML | Download |
| Download all files | |
