back to products
312011080_PICTO.TIF
312011080_PICTO.TIF 312026580.TIF

312.0185.80 TN35

Inserts

SEEGERRING.EPS EINSTECHEN.EPS

Material number 312018580TN35

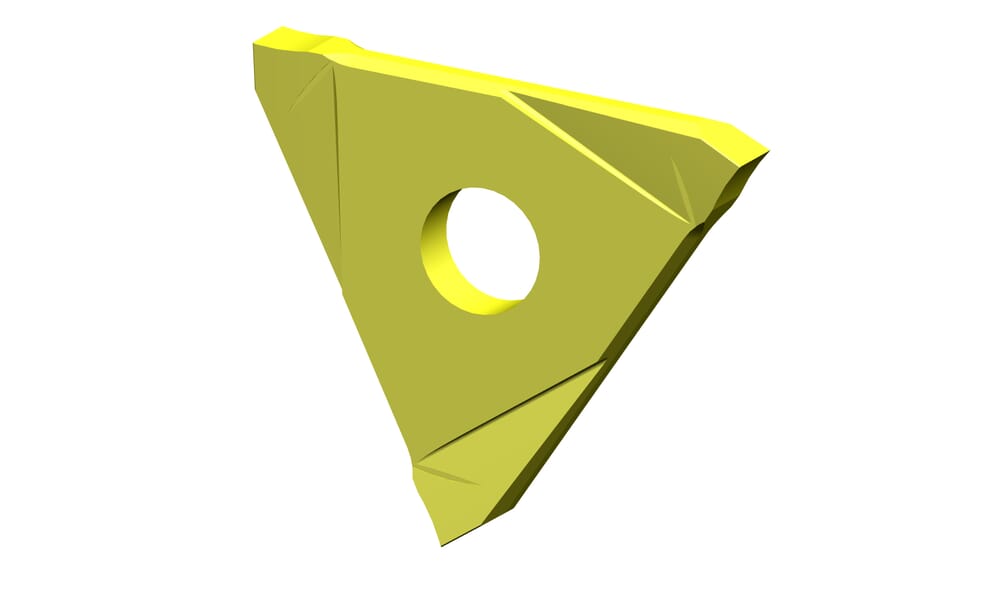

HORN Inserts 312.0185.80 TN35 for Turning

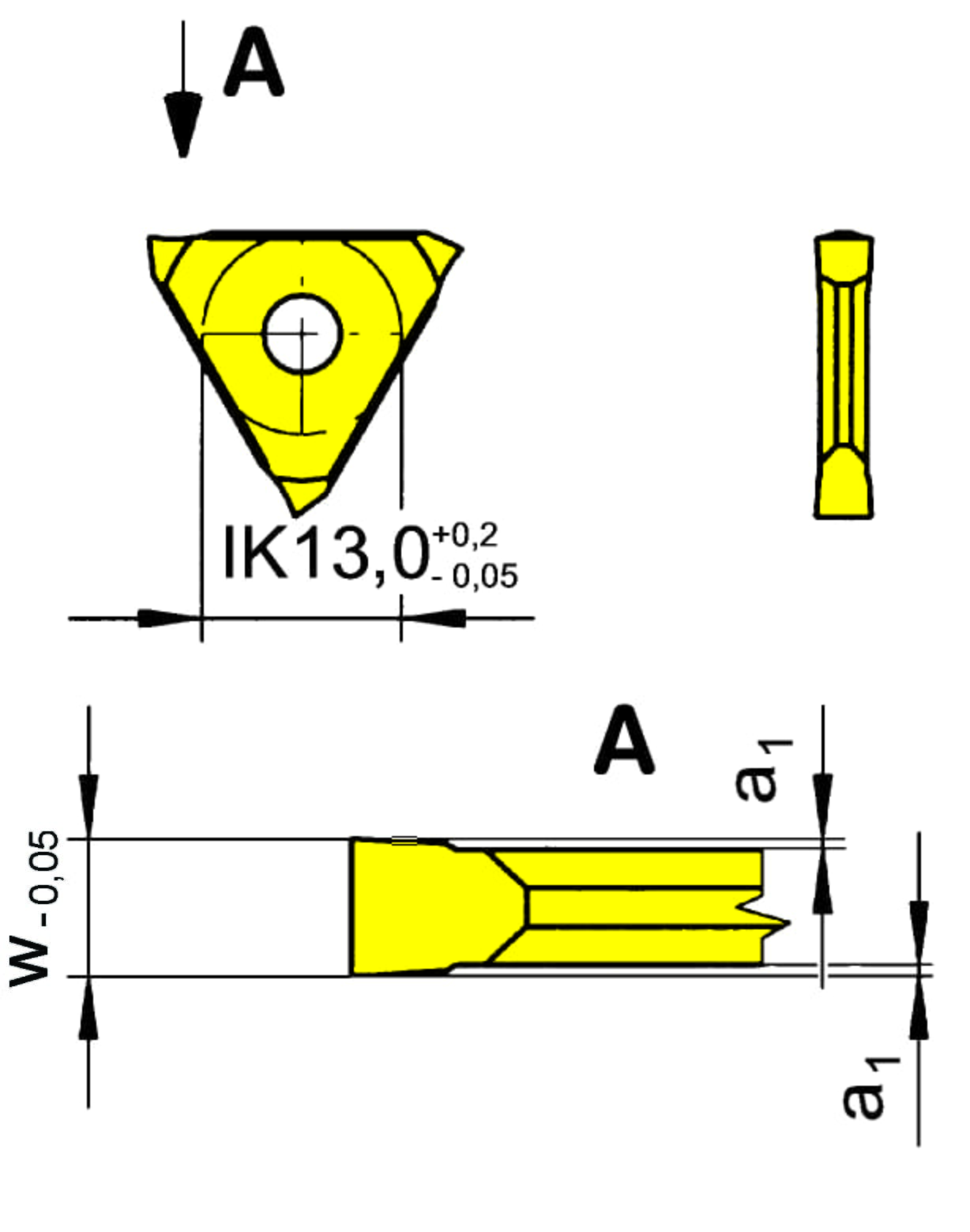

Technical instructions

Cancellation (a1)
0.2 mm
ISO_SSC
HORN-31201$000N$$$$$
Katalog_SSC
31201N
Plating seat size (Größe)
1
Width of groove (w)
1.99 mm
Nominal range (Nw)
1.85 mm
Downloads
312018580.STP Download
312018580_20210706_195723158.DXF Download
Download all files
