312.0215.10 EG56
Insert
Material number 312021510EG56

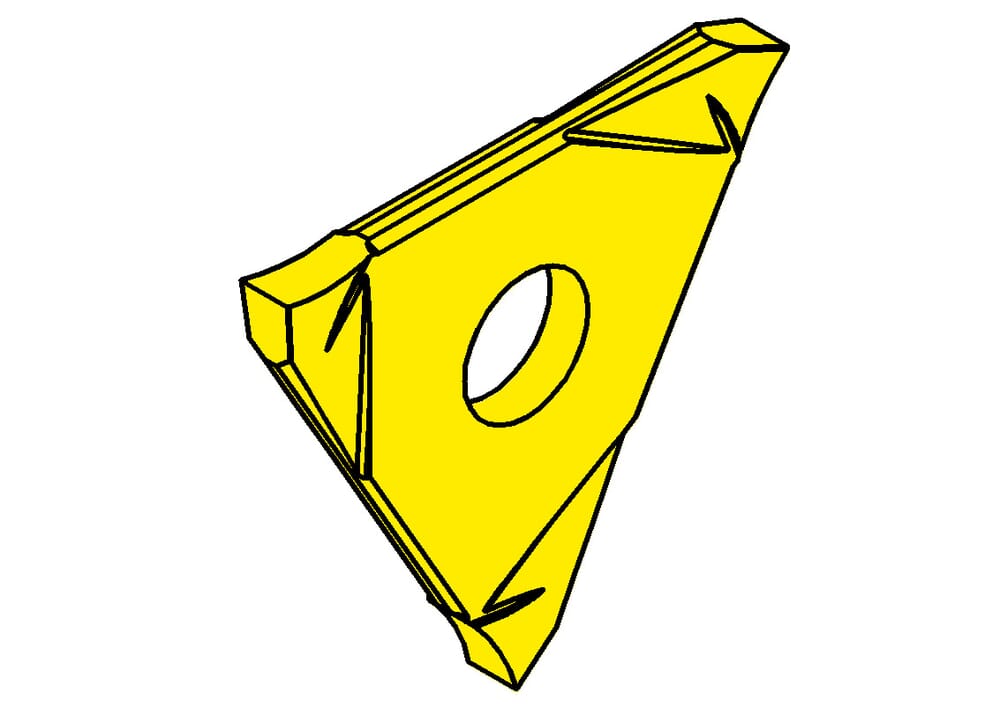

HORN Insert 312.0215.10 EG56 for Turning

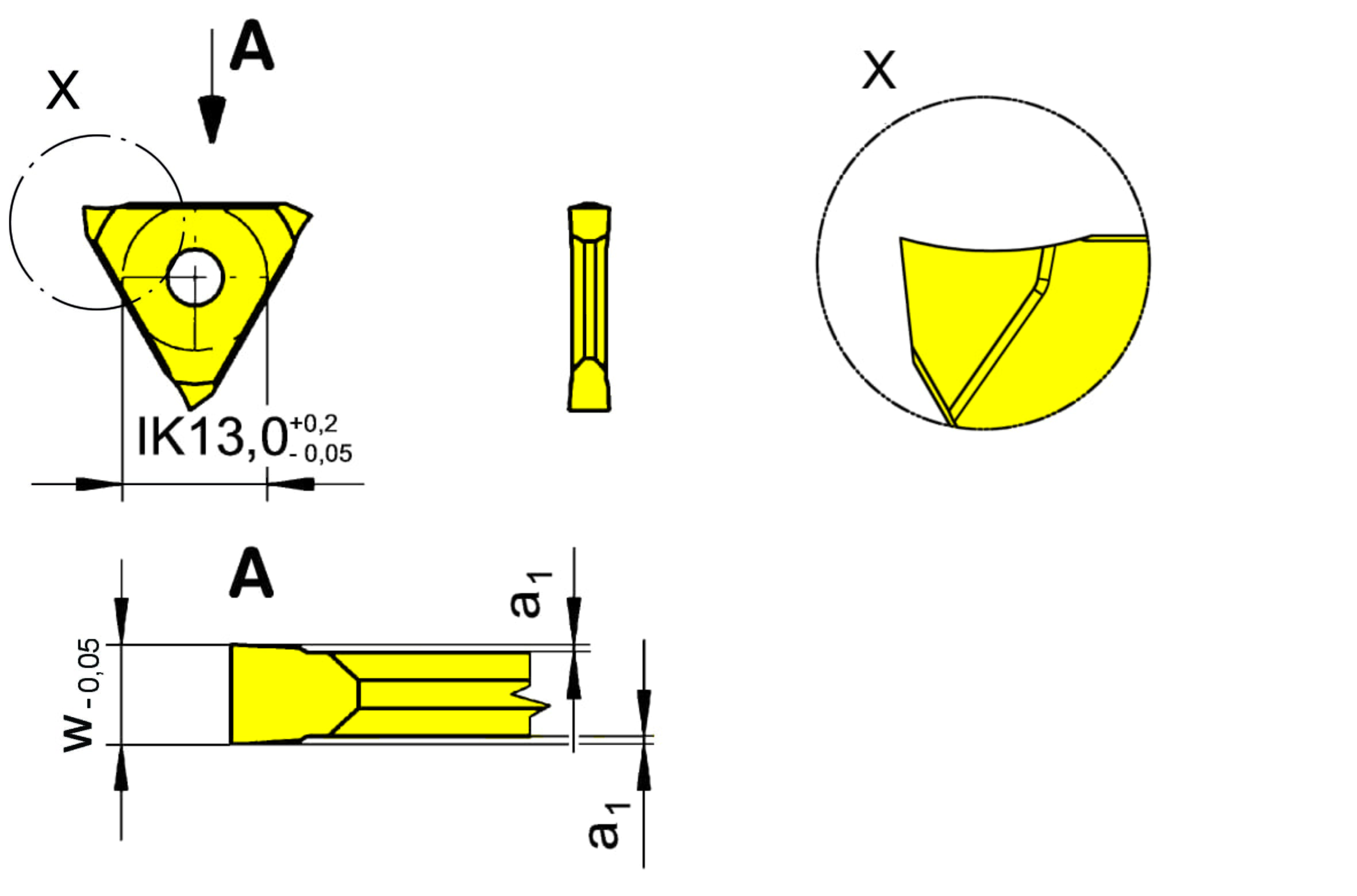

Cancellation (a1)
0.2 mm
ISO_SSC
HORN-31202$000N$$$$$
Katalog_SSC
31202N
Plating seat size (Größe)
2
Width of groove (w)
2.29 mm
Nominal range (Nw)
2.15 mm
| Downloads | |
|---|---|
| 312021510_20240117_015945409.STP | Download |
| 312021510.DXF | Download |
| Download all files | |
