312.1101.25 EG52
Insert
Material number 312110125EG52

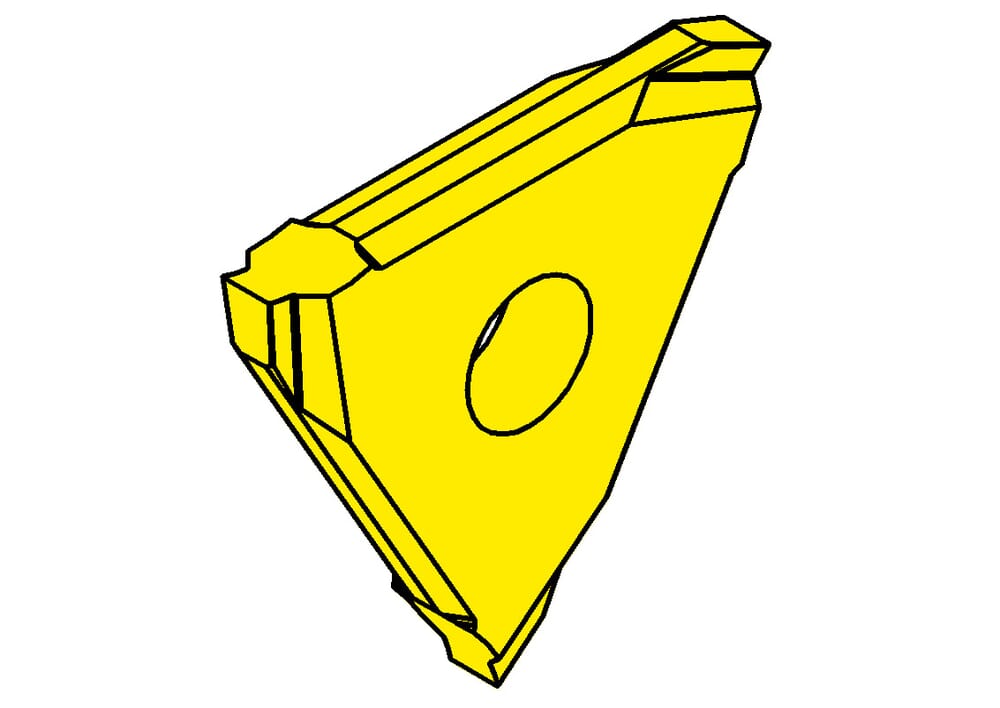

HORN Insert 312.1101.25 EG52 for Turning
Cancellation (a1)
0.64 mm
Maximum depth of groove (tmax)
0.2 mm
ISO_SSC
HORN-31202$000N$$$$$
Katalog_SSC
31202N
Plating seat size (Größe)
2
Width of groove (w)
1.24 mm
Milling depth without NAKF (t1)
0.19 mm
Nominal range (Nw)
1.1 mm
Cutting insert width (s)
2.5 mm
| Downloads | |
|---|---|
| 312110125_20230112_134300866.STP | Download |
| 312110125.DXF | Download |
| Download all files | |
