312.1608.33 TN32
Inserts
Material number 312160833TN32

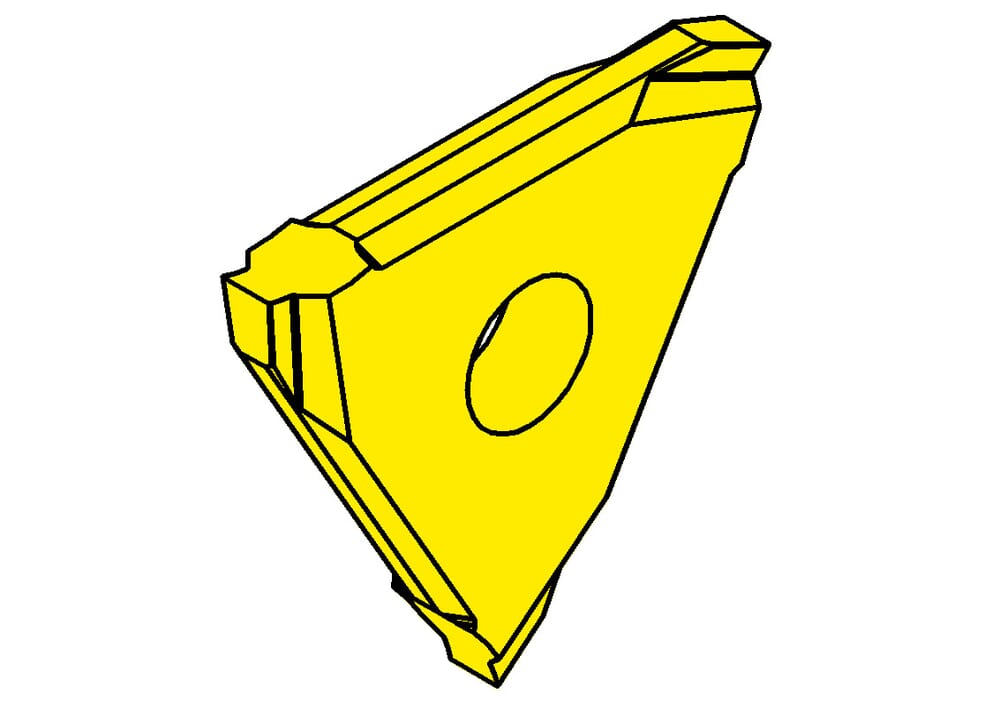

HORN Inserts 312.1608.33 TN32 for Turning
Cancellation (a1)
0.79 mm
Maximum depth of groove (tmax)
0.85 mm
ISO_SSC
HORN-31203$000N$$$$$
Katalog_SSC
31203N
Plating seat size (Größe)
3
Width of groove (w)
1.74 mm
Milling depth without NAKF (t1)
0.75 mm
Nominal range (Nw)
1.6 mm
Cutting insert width (s)
3.3 mm
| Downloads | |
|---|---|
| 312_1608_33_TN32-DXF.DXF | Download |
| 312_1608_33_TN32-STP.STP | Download |
| 312_1608_33_TN32-ISO.XML | Download |
| 312_1608_33_TN32-DIN.XML | Download |
| Download all files | |
