312.4120.53 TN32
Inserts
Material number 312412053TN32

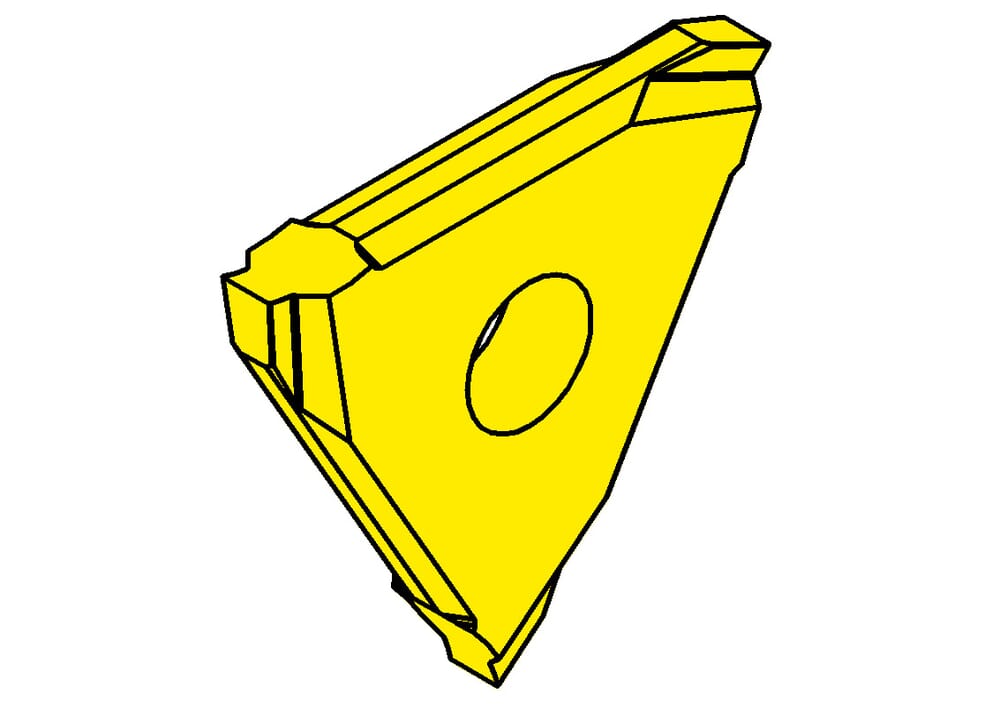

HORN Inserts 312.4120.53 TN32 for Turning
Cancellation (a1)
0.52 mm
Maximum depth of groove (tmax)
2 mm
ISO_SSC
HORN-31204$000N$$$$$
Katalog_SSC
31204N
Plating seat size (Größe)
4
Width of groove (w)
4.29 mm
Milling depth without NAKF (t1)
1.85 mm
Nominal range (Nw)
4.15 mm
Cutting insert width (s)
5.3 mm
| Downloads | |
|---|---|
| 312_4120_53.STP | Download |
| Download all files | |
