313.0090.00 MG12

Inserts

Material number 313009000MG12

HORN Inserts 313.0090.00 MG12 for Milling

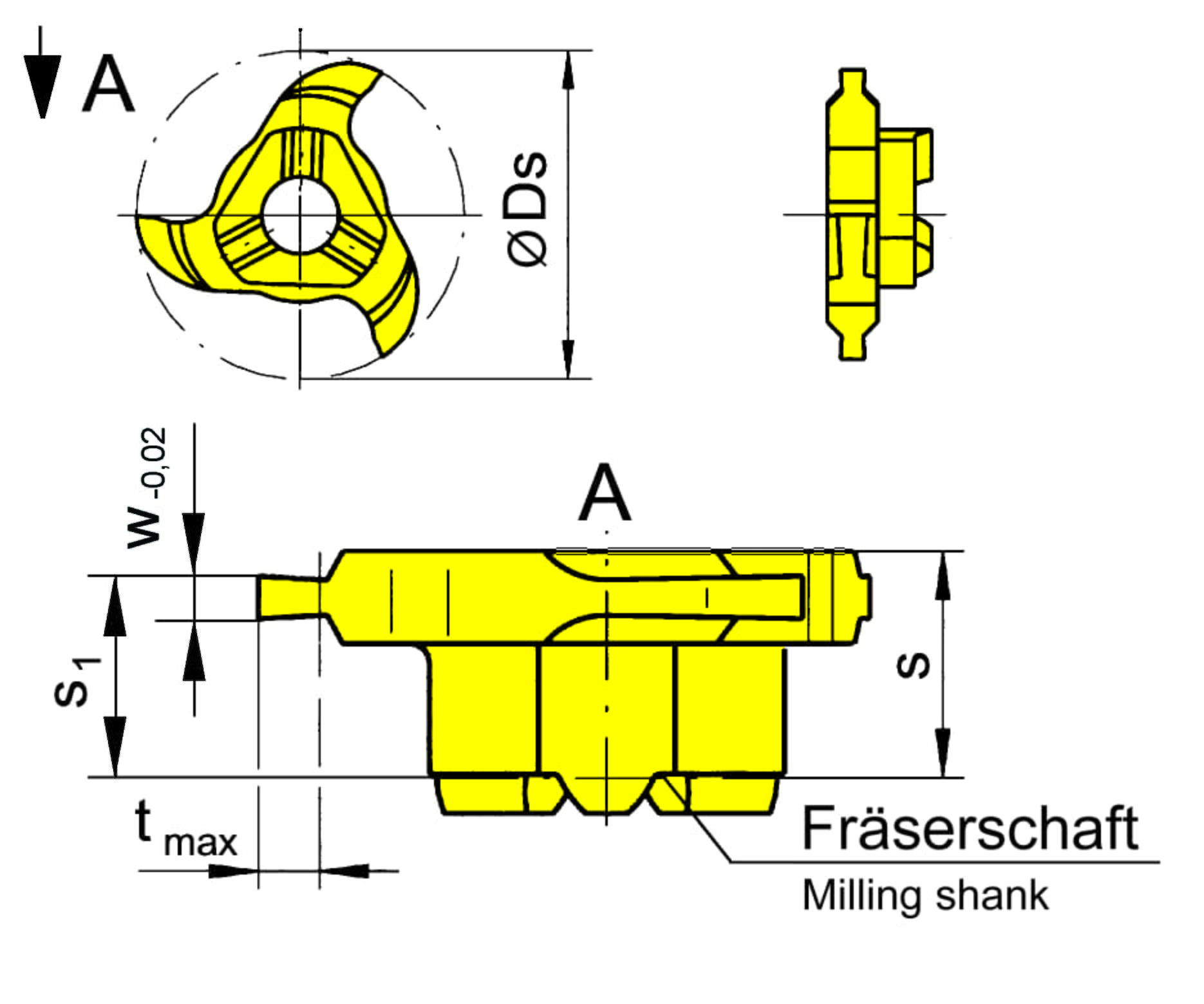

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

0.97 mm

Maximum milling depth/ depth of groove (tmax)

1.9 mm

Nominal range (Nw)

0.9 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.6 mm
