313.0100.00 EG55

insert

Material number 313010000EG55

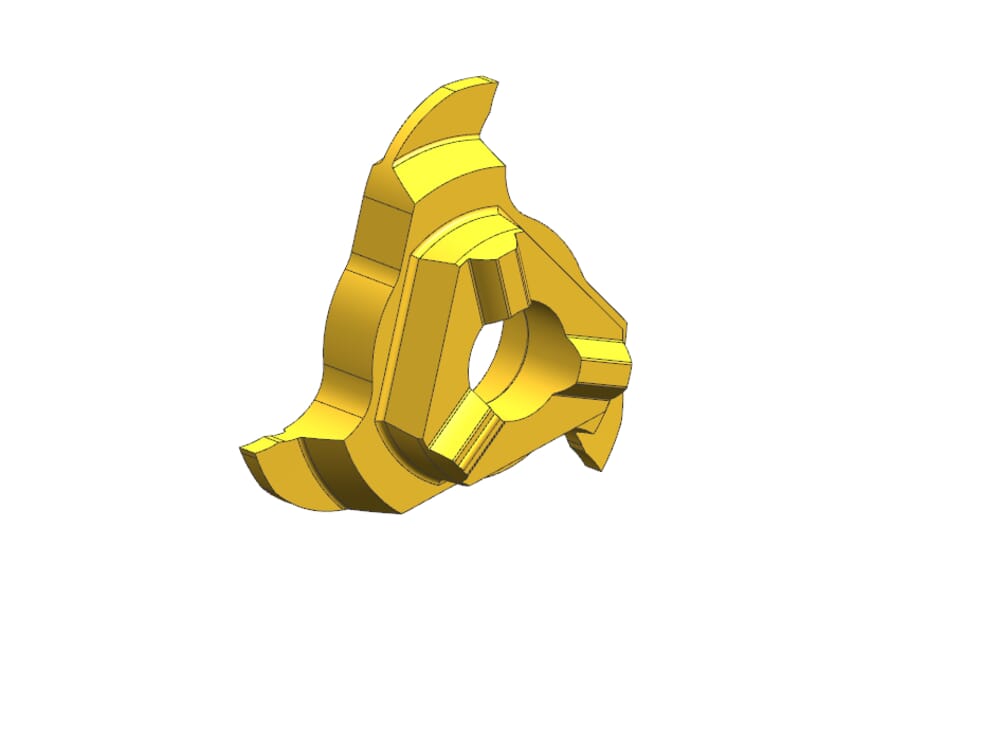

HORN insert 313.0100.00 EG55 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

1.07 mm

Maximum milling depth/ depth of groove (tmax)

2.2 mm

Nominal range (Nw)

1 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.6 mm

Insert

606010000EG35

Insert

335050000TI25

Inserts

L105020055TN35

Disk milling cutter

38302004010

Inserts

306020000TN35
