313.0110.00 TN35
Inserts
Material number 313011000TN35

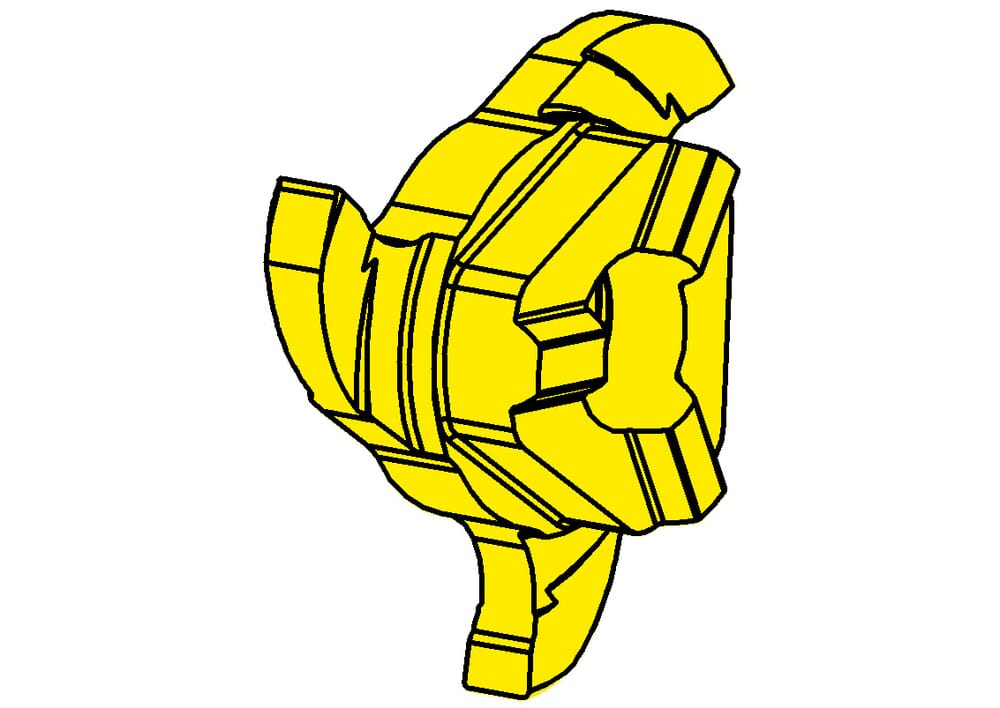

HORN Inserts 313.0110.00 TN35 for Milling
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
1.21
mm
Maximum milling depth/ depth of groove (tmax)
2.5
mm
Nominal range (Nw)
1.1
mm
Cutting insert thickness, setting length complete (s)
5.9
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
5.6
mm
| Downloads | |
|---|---|
| 313_0110_00_TN35-DXF.DXF | Download |
| 313_0110_00_TN35-STP.STP | Download |
| 313_0110_00_TN35-DIN.XML | Download |
| Download all files | |
