313.0185.40 TI25
Inserts
Material number 313018540TI25

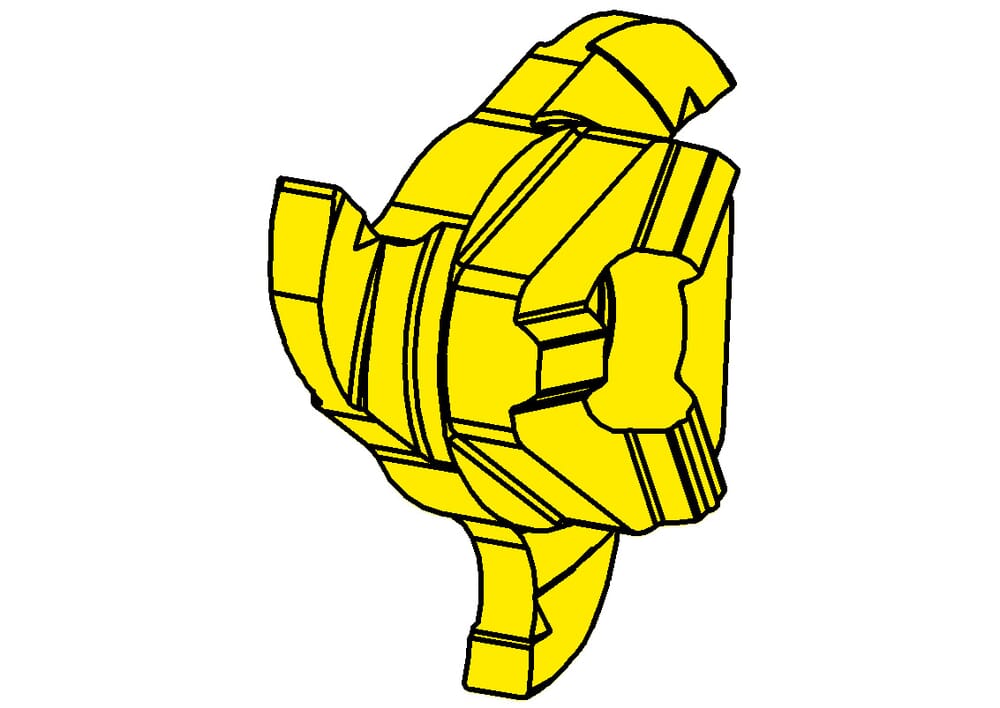

HORN Inserts 313.0185.40 TI25 for Milling
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
1.96
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Nominal range (Nw)
1.85
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 313_0185_40_TI25-DXF.DXF | Download |
| 313_0185_40_TI25-STP.STP | Download |
| 313_0185_40_TI25-DIN.XML | Download |
| Download all files | |
