313.1308.30 EG55

insert

Material number 313130830EG55

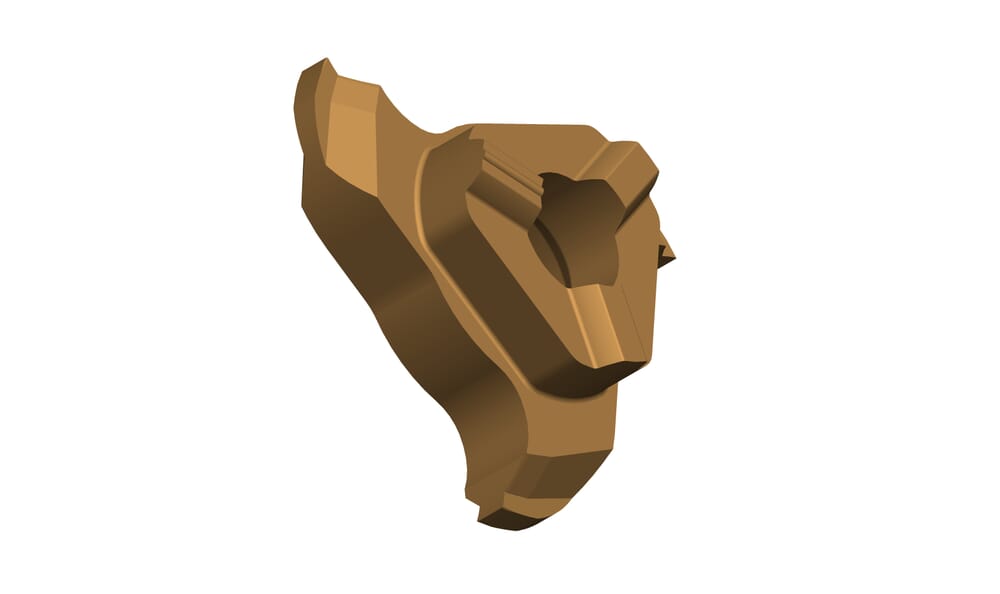

HORN insert 313.1308.30 EG55 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

1.41 mm

Maximum milling depth/ depth of groove (tmax)

0.85 mm

Milling depth without NAKF (t1)

0.81 mm

Nominal range (Nw)

1.3 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.17 mm

Flange

02000224030

Milling arbour

DM50GK040HK63150
