313.2616.45 AS45

Inserts

Material number 313261645AS45

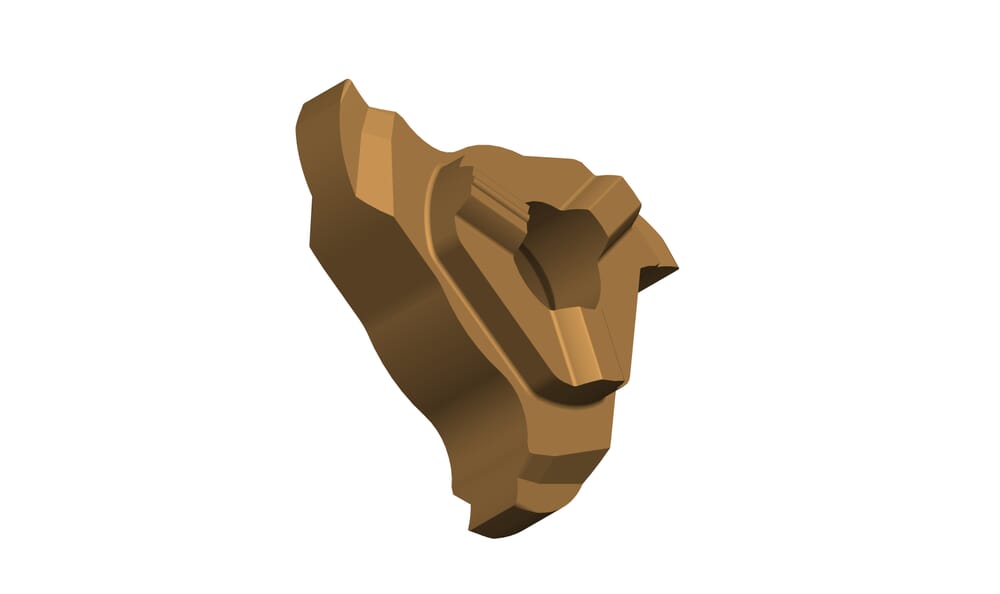

HORN Inserts 313.2616.45 AS45 for Milling

Cutting insert thickness, setting length complete (s)

5.9 mm

Corner radius (r)

0.2 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.09 mm

Cutting diameter (Ds)

21.7 mm

Nominal range (Nw)

2.65 mm

Milling depth without NAKF (t1)

1.45 mm

Maximum milling depth/ depth of groove (tmax)

1.5 mm

Width of groove (w)

2.76 mm

Katalog_SSC

313113R

ISO_SSC

HORN313113$84R$$$$$

Number of teeth (Z)

3 St.
