328.0150.2.00 TI25
Inserts
Material number 3280150200TI25

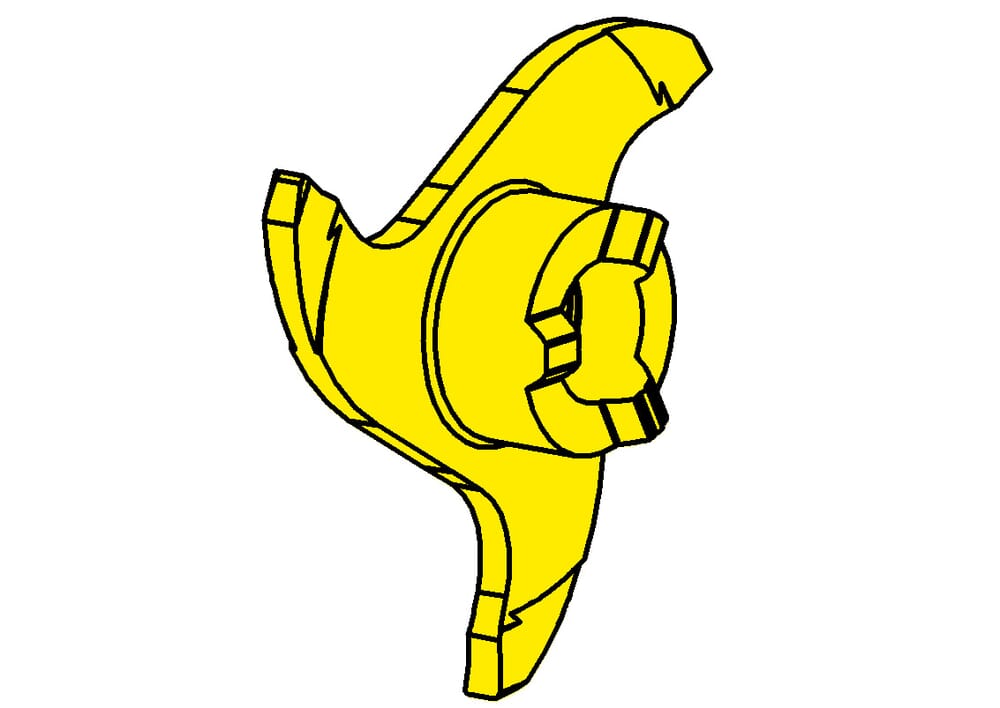

HORN Inserts 328.0150.2.00 TI25 for Milling
Cutting diameter (Ds)
28
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN328090$84R$$$$$
DIN_SSC
HORN32809084R
Katalog_SSC
328090R
plating-seat-size
1
Width of groove (w)
1.5
mm
Maximum milling depth/ depth of groove (tmax)
9.3
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
