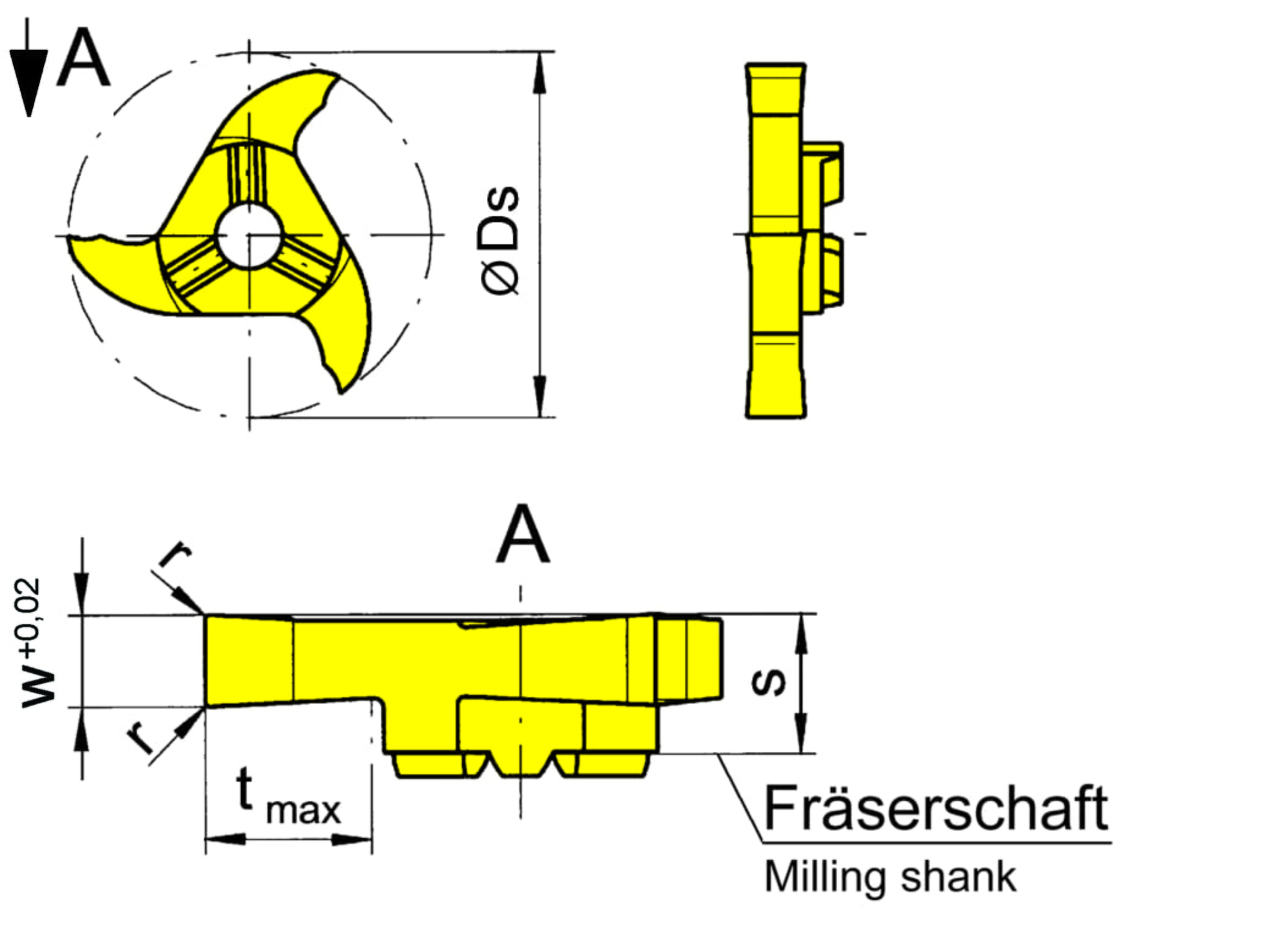

Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
plating-seat-size
0
Width of groove (w)
4
mm
Maximum milling depth/ depth of groove (tmax)
6.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 328040040_20210630_122548735.STP | Download |
| 328040040.DXF | Download |
| Download all files | |
