328.1525.01 AS45
Insert
Material number 328152501AS45

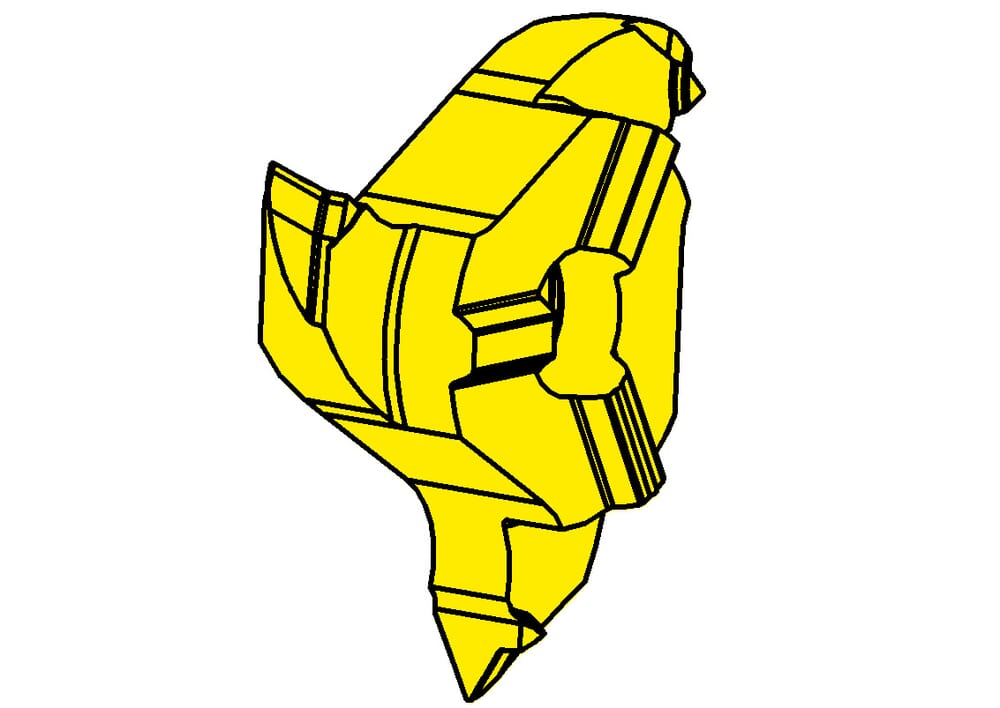

HORN Insert 328.1525.01 AS45 for Gewinden
Cutting diameter (Ds)
27.7
mm
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
Setting length (E)
4.3
mm
Cutting insert height, Cutting insert thickness (s)
5.95
mm
Pitch (P)
1.5
mm
Maximum pitch (Pmax)
2.5
mm
| Downloads | |
|---|---|
| 328_1525_01_AS45-DXF.DXF | Download |
| 328_1525_01_AS45-STP.STP | Download |
| 328_1525_01_AS45-DIN.XML | Download |
| Download all files | |
