328.3050.01 AS45
Insert
Material number 328305001AS45

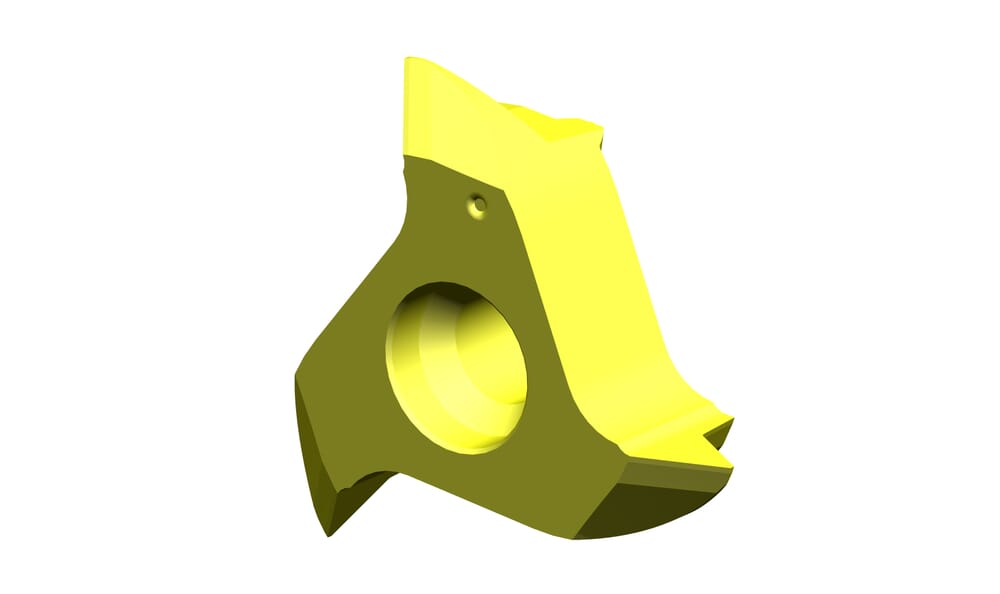

HORN Insert 328.3050.01 AS45 for Gewinden
Cutting diameter (Ds)
27.7 mm
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Setting length (E)
4.8 mm
Cutting insert height, Cutting insert thickness (s)
7.2 mm
Pitch (P)
3 mm
Maximum pitch (Pmax)
5 mm
| Downloads | |
|---|---|
| 328_3050_01_AS45-ISO.XML | Download |
| 328_3050_01_AS45-DXF.DXF | Download |
| 328_3050_01_AS45-STP.STP | Download |
| 328_3050_01_AS45-DIN.XML | Download |
| Download all files | |
