939.0150.4.00 RC25
Insert
Material number 9390150400RC25

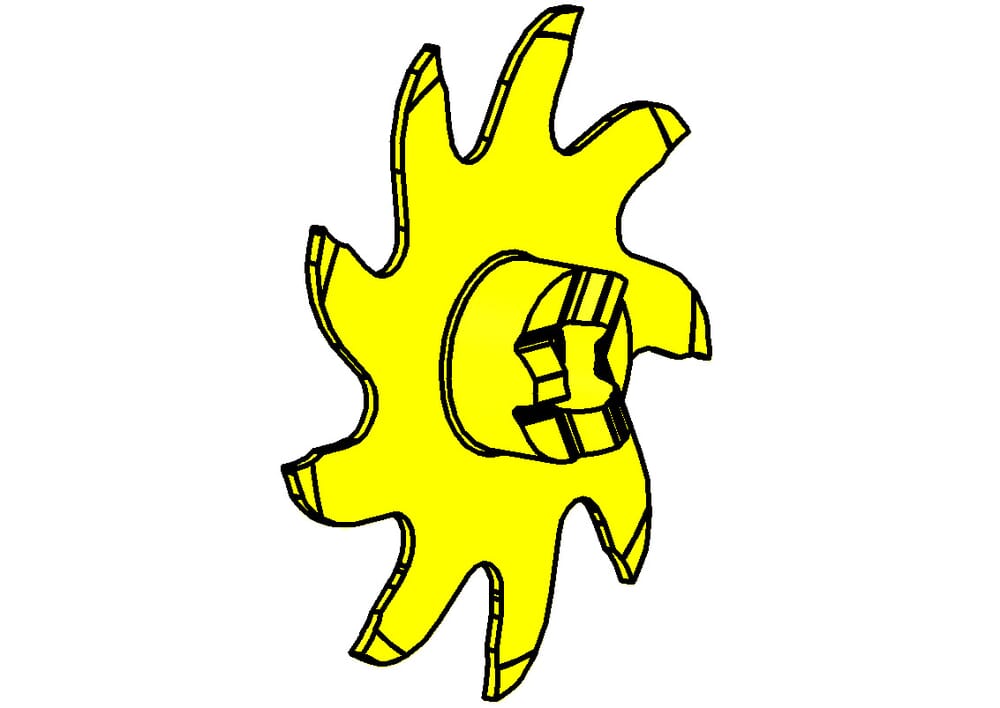

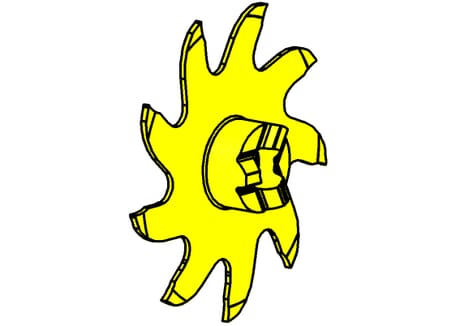

HORN Insert 939.0150.4.00 RC25 for Milling
Cutting diameter (Ds)
40 mm
Number of teeth (Z)
9 St.
ISO_SSC
HORN332110$84R$$$$$
Katalog_SSC
332110R
Width of groove (w)
1.5 mm
Maximum milling depth/ depth of groove (tmax)
14 mm
Cutting insert thickness, setting length complete (s)
5.8 mm
| Downloads | |
|---|---|
| 939_0150_4_00_RC25-DXF.DXF | Download |
| 939_0150_4_00_RC25-DIN.XML | Download |
| 939_0150_4_00_RC25-STP.STP | Download |
| 939_0150_4_00_RC25-ISO.XML | Download |
| Download all files | |
