B105.0010.S.04
Toolholder
Material number B1050010S04

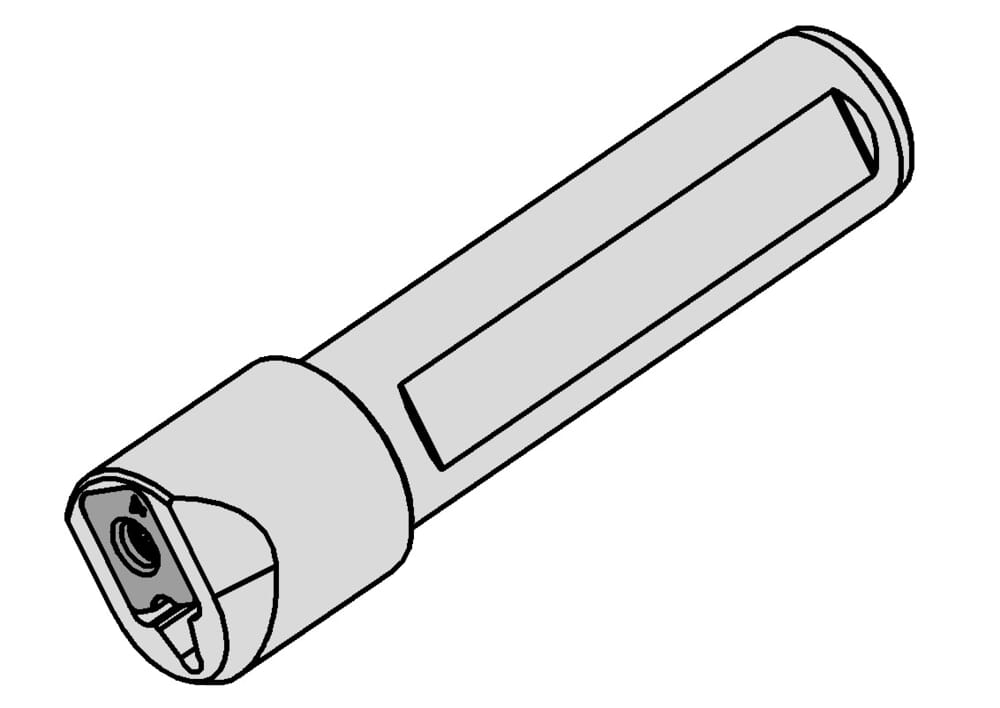

HORN Toolholder B105.0010.S.04 for Turning
Shank, clamping diameter (d)
10 mm
ISO_CCTMS
ZYL23G1000$$$$
DIN_CCTMS
ZYL01002315
Katalog_CCTWS
105124
DIN_CCTWS
HORN-10512495N
ISO_CCTWS
HORN105124$95N$$$$$
Width of blank (b)
6.4 mm
Length of clamping surface(s) (l4)
50 mm
Head diameter (d1)
20 mm
Height clamping surface(s) (h)
9 mm
Total length (without cutting insert) (l1)
80 mm
Adjustment dimension (f1)
4.9 mm
| Downloads | |
|---|---|
| B105_0010_S_04-DXF.DXF | Download |
| B105_0010_S_04-STP.STP | Download |
| B105_0010_S_04-ISO.XML | Download |
| B105_0010_S_04-DIN.XML | Download |
| Download all files | |
