B117.DD.16.3.A.16
Tool Holder
Material number B117DD163A16

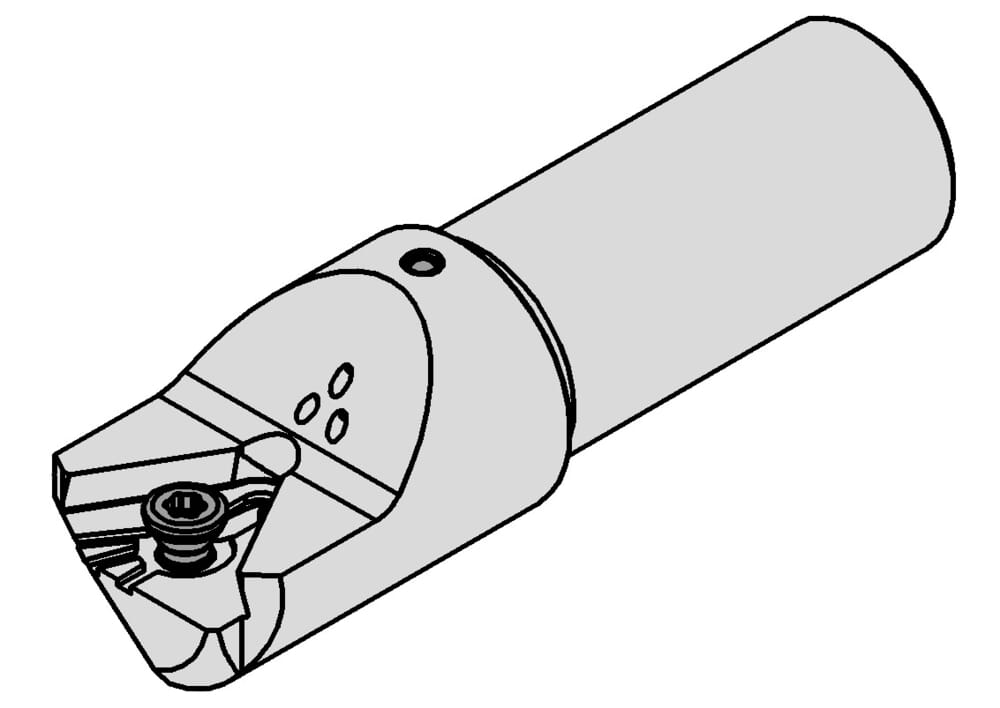

HORN Tool Holder B117.DD.16.3.A.16 for Drilling
Shank length (l3)
48 mm
Distance to the center of the cutting edge (h1)
2.5
Insertion angle (α)
0
Total length (including cutting insert) (l1)
80 mm
Head diameter (d1)
15.8 mm
Shank, clamping diameter (d)
16 mm
Semi-finished insert (Schneidplatte)
D117.0016.02.5.00
Working length (l2)
10 mm
