BKT.D008.1732.01.IK

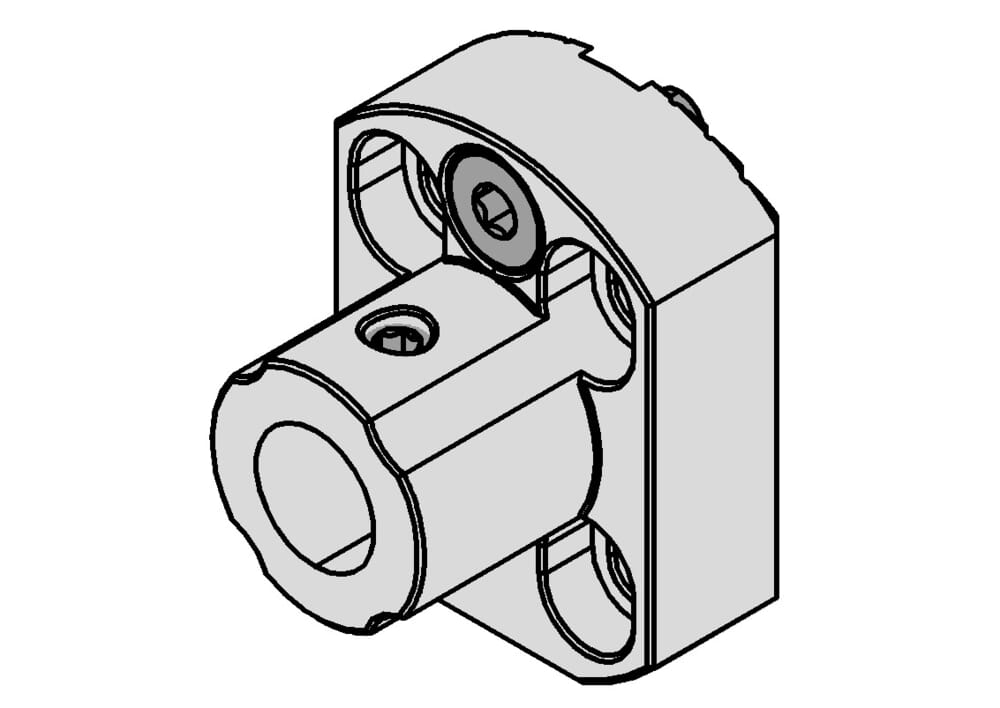

Back working holder for round shank D=8mm
Material number BKTD008173201IK
HORN Back working holder for round shank D=8mm BKT.D008.1732.01.IK for Turning
Outcropping, neck, working length (l3)
13 mm
Bore diameter (d)
8
Width (b)
17 mm
Bore diameter rotate (h)
32 mm
Total length (l1)
25 mm
| Downloads | |
|---|---|
| BKT_D008_1732_01_IK-DXF.DXF | Download |
| BKT_D008_1732_01_IK-STP.STP | Download |
| BKT_D008_1732_01_IK-ISO.XML | Download |
| BKT_D008_1732_01_IK-DIN.XML | Download |
| Download all files | |
