BKT.D008.2738.01.IK

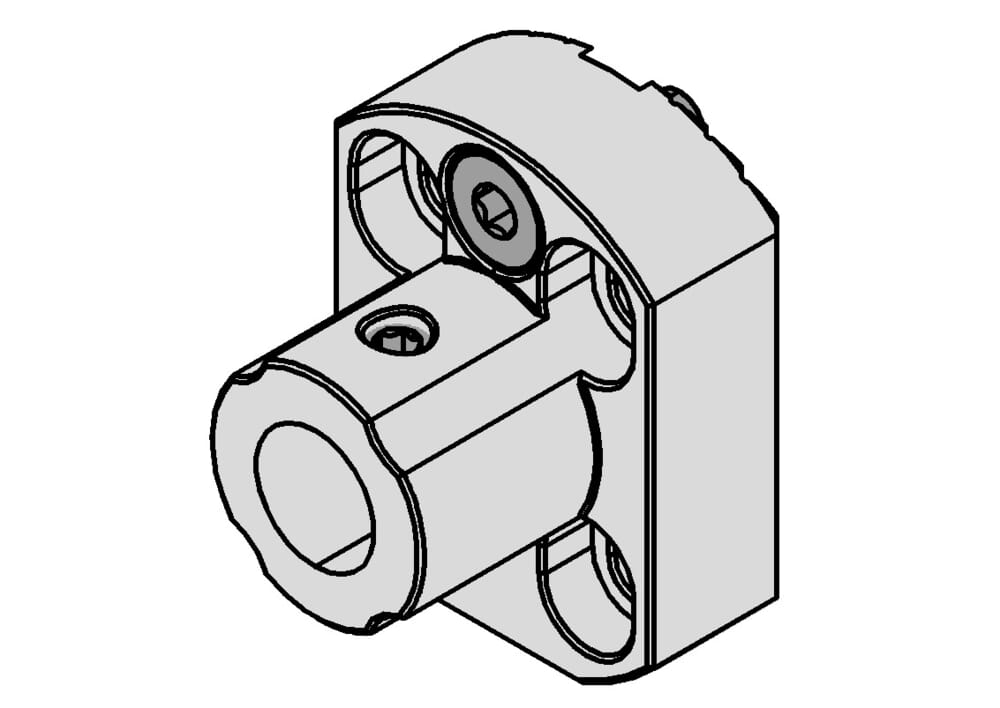

Basic holder back working d=8mm
Material number BKTD008273801IK
HORN Basic holder back working d=8mm BKT.D008.2738.01.IK for Turning
Outcropping, neck, working length (l3)
15 mm
Bore diameter (d)
8 mm
Width (b)
27 mm
Bore diameter rotate (h)
38 mm
Total length (l1)
27 mm
| Downloads | |
|---|---|
| BKT_D008_2738_01_IK-DXF.DXF | Download |
| BKT_D008_2738_01_IK-STP.STP | Download |
| BKT_D008_2738_01_IK-ISO.XML | Download |
| BKT_D008_2738_01_IK-DIN.XML | Download |
| Download all files | |
