CCGT09T308N.HN PD70

Inserts

Material number CCGT09T308NHNPD70

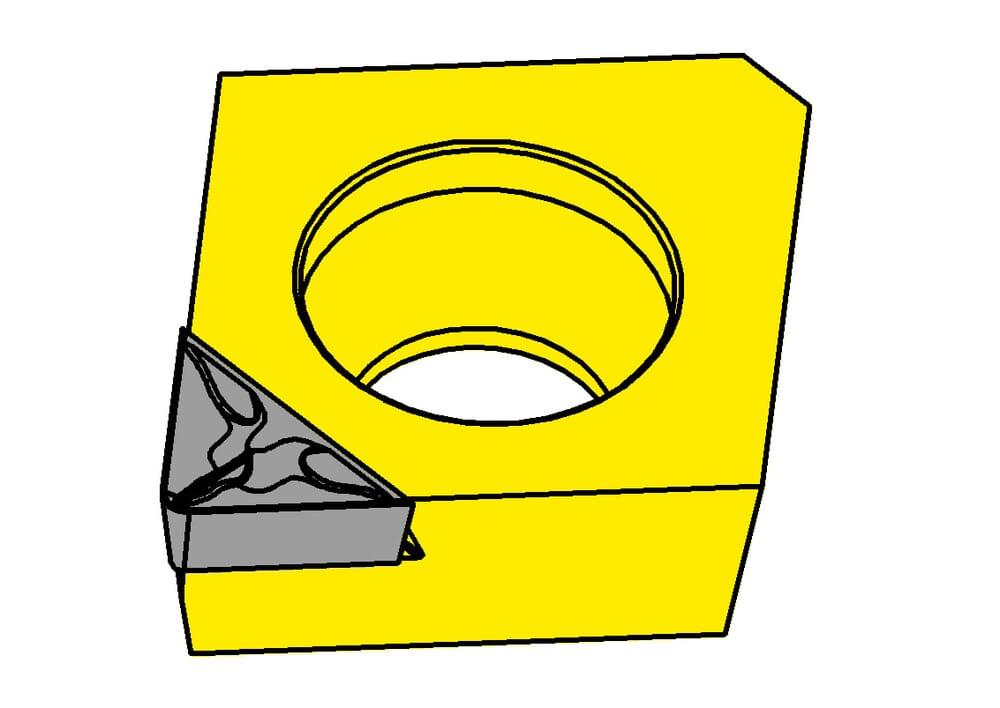

HORN Inserts CCGT09T308N.HN PD70 for Turning

Bore diameter (d2)

4.4 mm

Free angle (α)

7 °

ISO_SSC

ISO$CC09T3083NB$$08

Corner radius (r)

0.8 mm

Cutting insert height, Cutting insert thickness (s)

3.97 mm

Effective cutting length (l1)

3.5 mm

Inner circle diameter (d)

9.525 mm
