DGV.4.10.R300.00 AN2P
Insert
Material number DGV410R30000AN2P

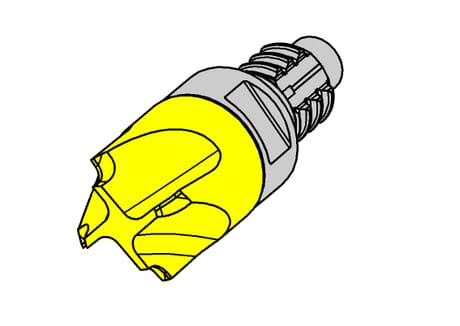

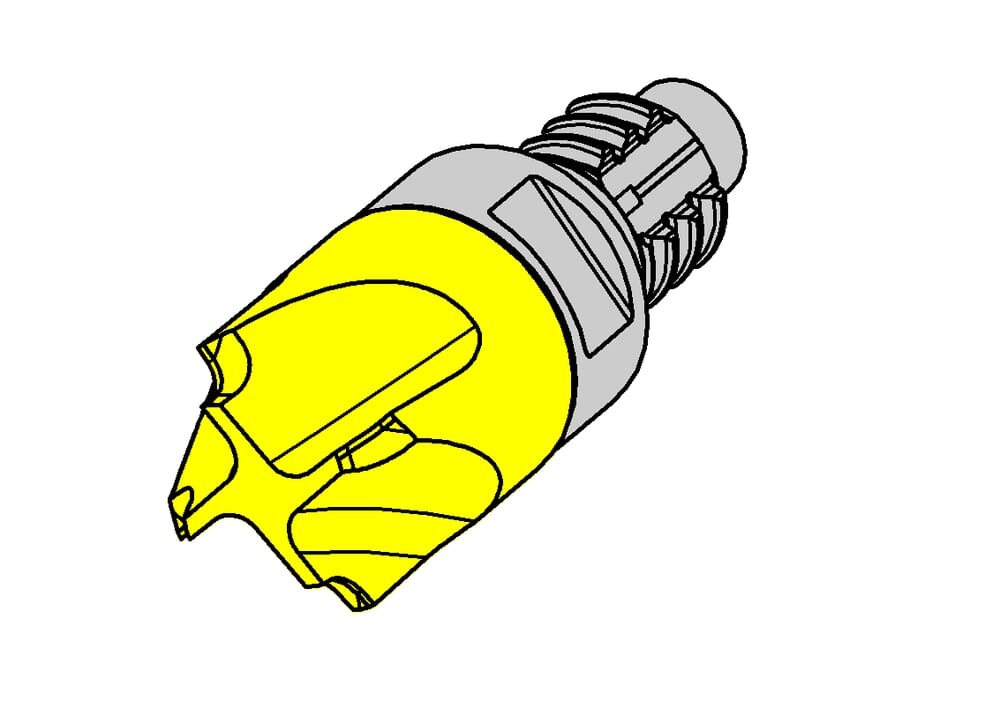

HORN Insert DGV.4.10.R300.00 AN2P for Milling

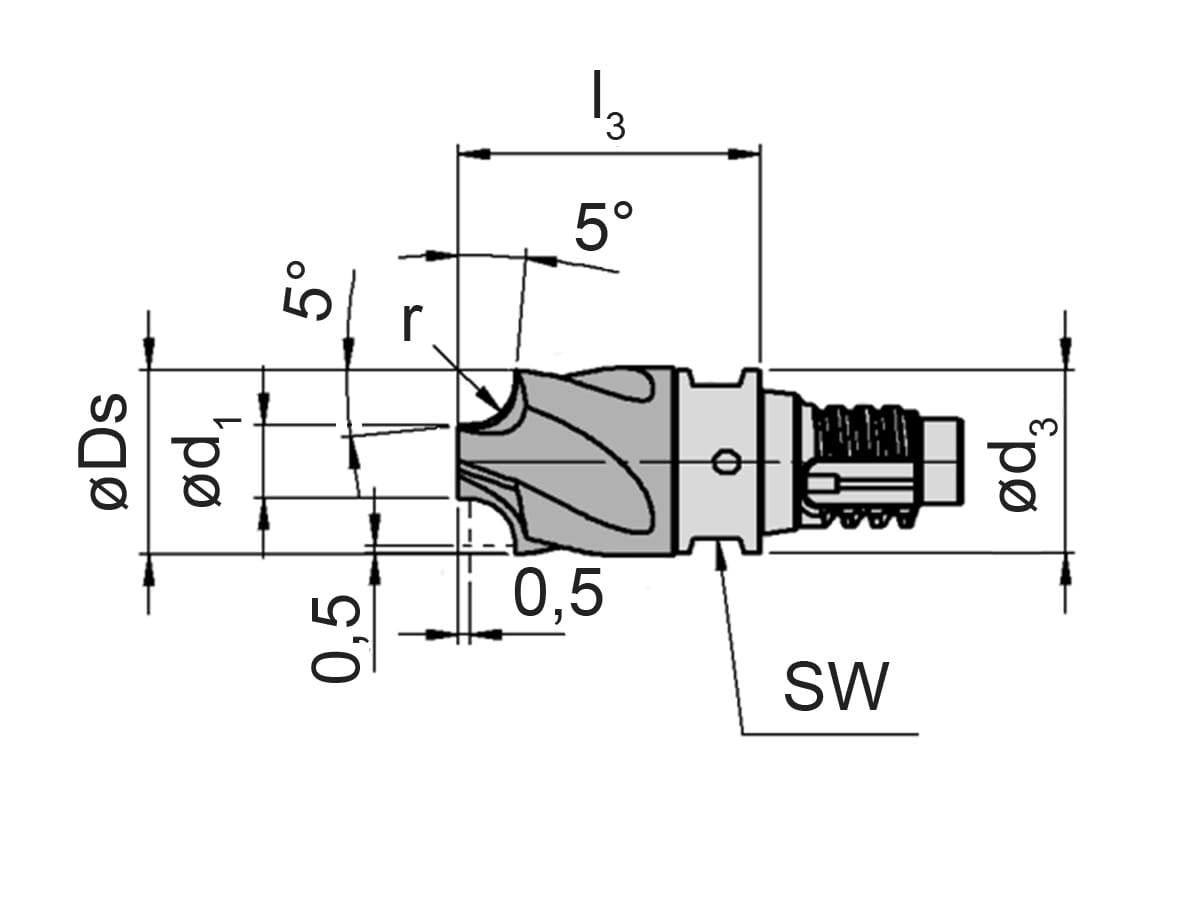

Cutting diameter (Ds)
10
mm
Number of teeth (Z)
4
St.
System (System)
DG10
ISO_SSC
HORNDG01018$0N$$$$$
DIN_SSC
HORN-DG01010N
Katalog_SSC
DG0101
Neck diameter (d3)
9.8
mm
Key range (SW)
8
mm
Corner radius (r)
3
mm
Tool length from stop, flange (l3)
16.8
mm
Diameter (d1)
3
mm
| Downloads | |
|---|---|
| DGV410R30000_20210630_102648000.STP | Download |
| DGV410R30000.DXF | Download |
| Download all files | |
