DSRV.4.200.020.30 IG3I

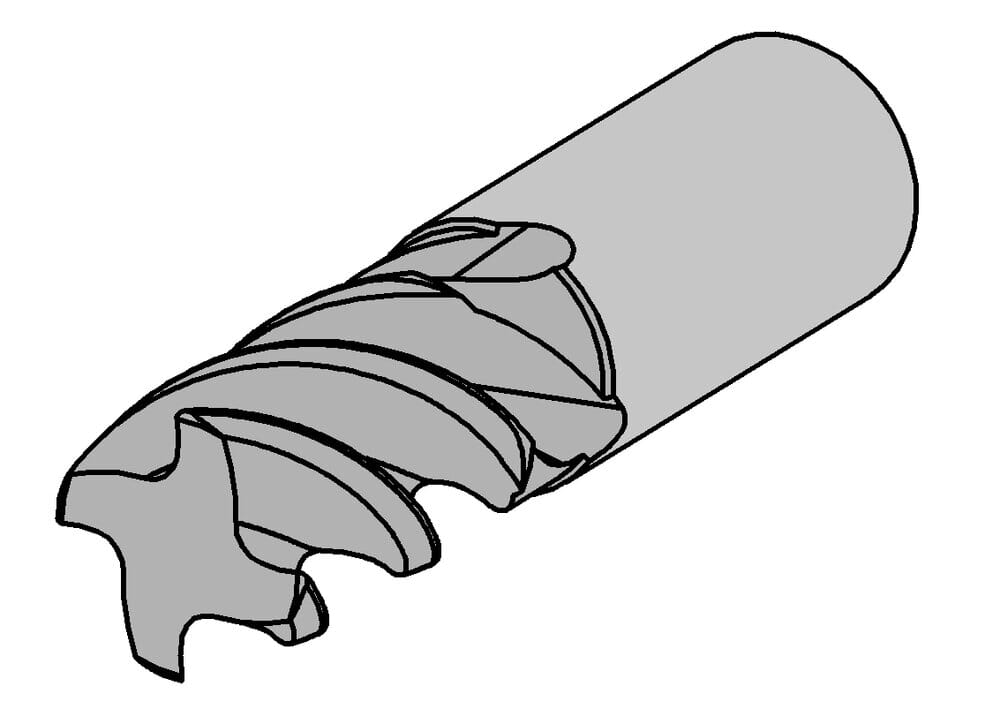

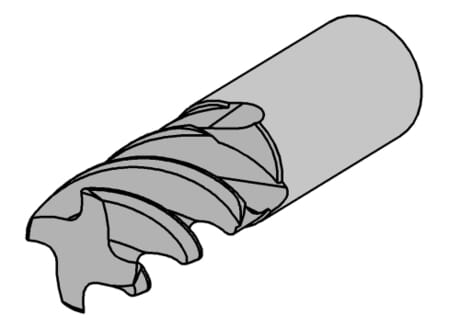

DS-end mill Ø20 R0,2 3xØ Z4
Material number DSRV420002030IG3I
HORN DS-end mill Ø20 R0,2 3xØ Z4 DSRV.4.200.020.30 IG3I for Milling
Shank diameter (d2)
20 mm
Neck length (l3)
60 mm
Cutting diameter (d1)
20 mm
Number of teeth (Z)
4 St.
DIN_CCTMS
ZYL02000105
ISO_CCTMS
ZYL01G2000h$06
Neck diameter (d3)
19 mm
Form (Form)
HA
Corner radius (r)
0.2 mm
Effective cutting length (l2)
42 mm
Total length (l1)
120 mm
