DTM.1710.063.A22.14.AL.F

Aufsteckfräser

Material number DTM1710063A2214ALF

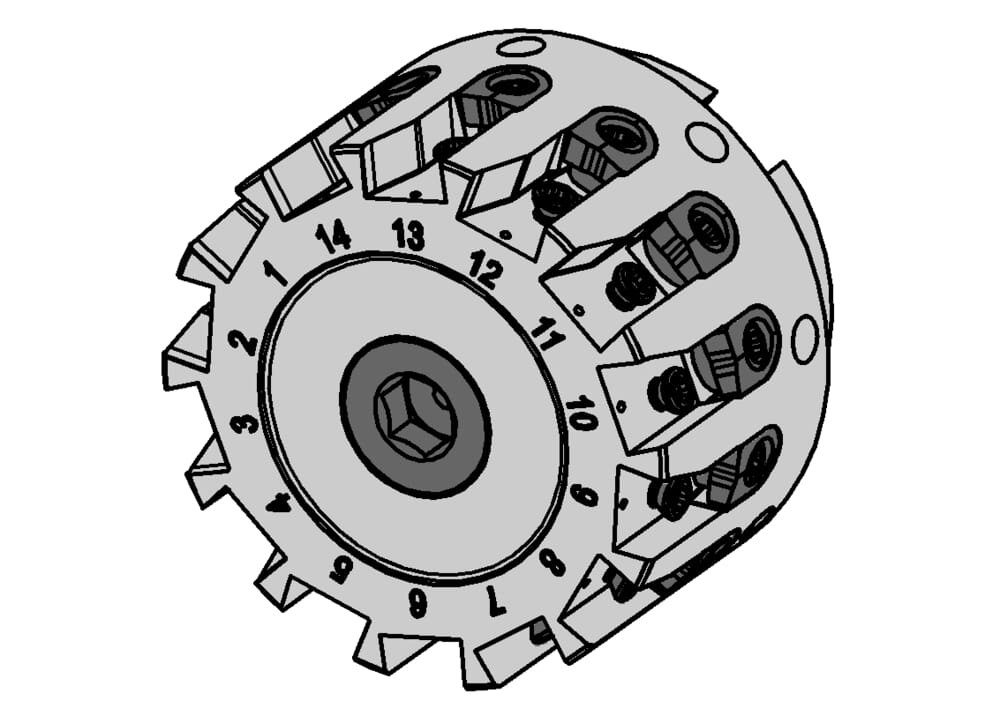

HORN Aufsteckfräser DTM.1710.063.A22.14.AL.F for Milling

DIN_CCTWS

HORN-1710013R

Number of revolutions maximum (nmax)

16000 Min-1

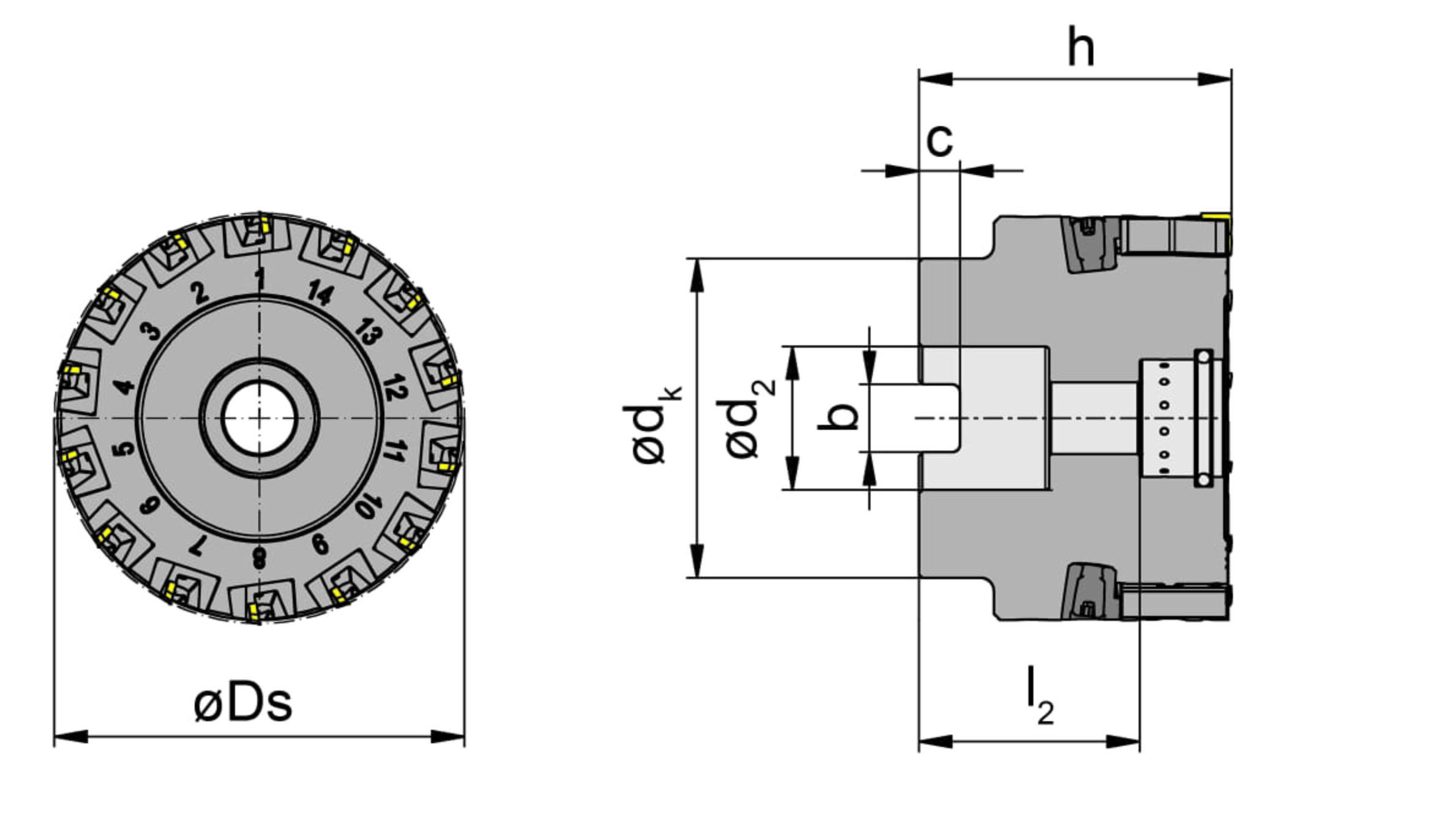

Depth carrier cross groove (C)

6.3 mm

Width carrier cross groove (b)

10.4 mm

Length from stop to base fastening screw head (l2)

33.9 mm

Mounting hole diameter (d2)

22 mm

Neck diameter/ Flange diameter miller mandrel (dK)

49 mm

Miller length with indexable insert (h)

48 mm

Katalog_CCTWS

171001

ISO_CCTWS

HORN171001$$3R$$$$$

Number of teeth (Z)

14 St.

Cutting diameter (Ds)

63 mm

Downloads
DTM1710063A2214ALF_20240118_120250002.STP	Download
Download all files
