L11P.1859.03.BA CH1G
Insert
Material number L11P185903BACH1G

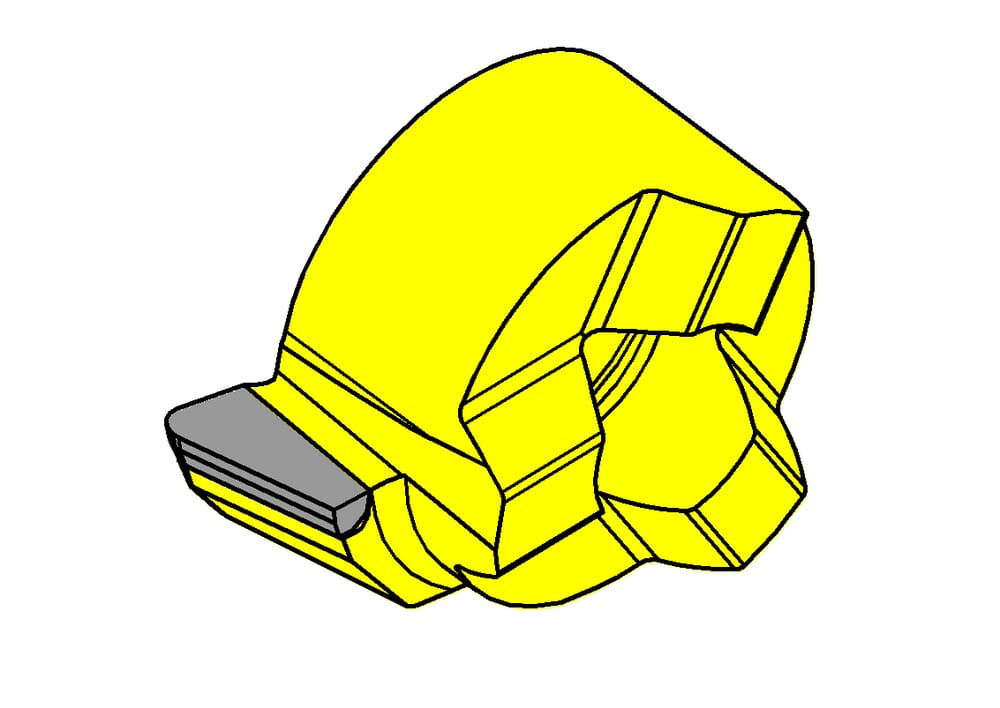

HORN Insert L11P.1859.03.BA CH1G for Turning

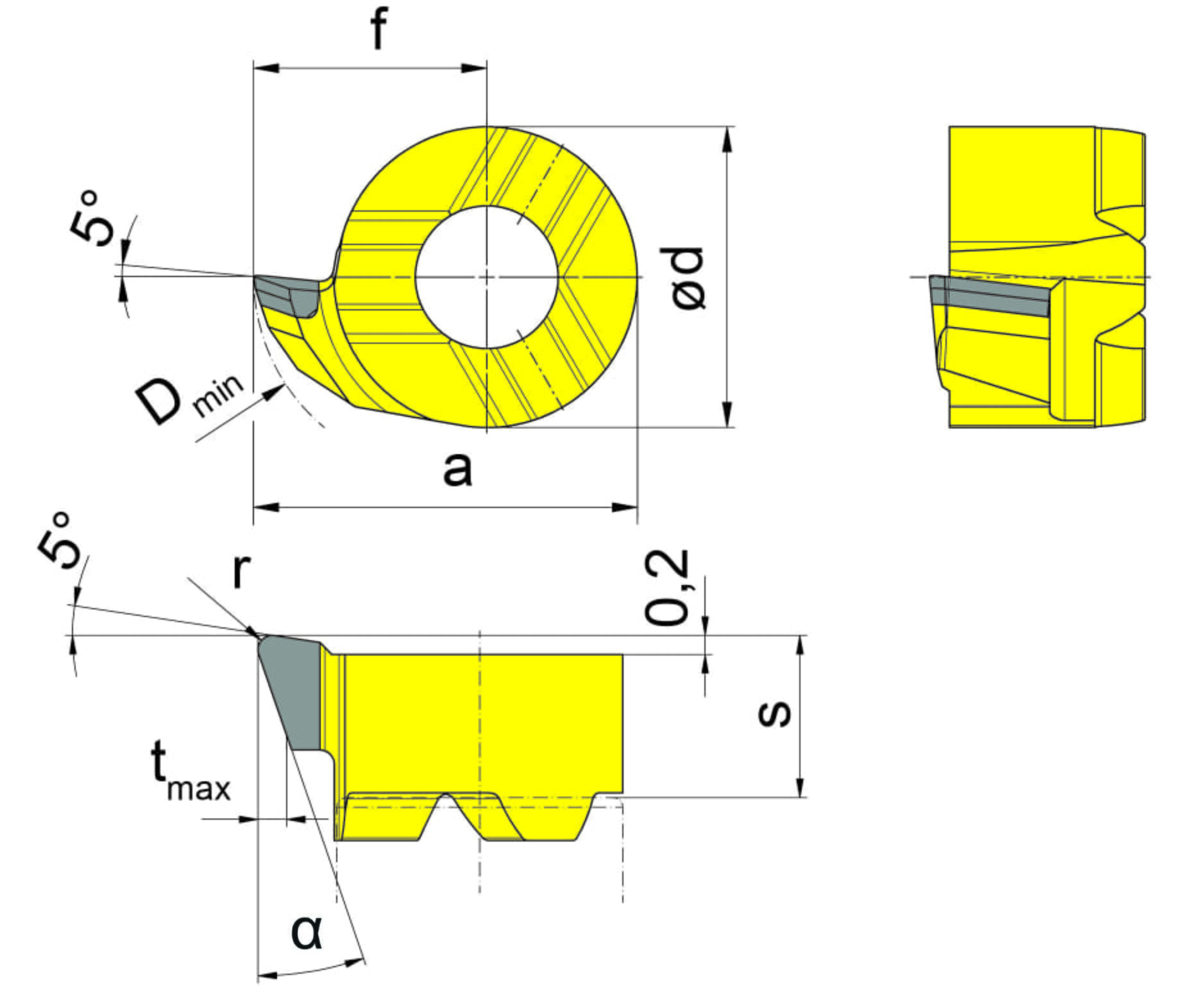

Top radius (r)
0.3
mm
Free angle (α)
18
°
Head size (a)
9.4
mm
ISO_SSC
HORN11P070$84L$$$$$
DIN_SSC
HORN-11P07084L
Katalog_SSC
11P070L
Setting range radial (f)
5.9
mm
Tooth diameter, head diameter (d)
7
mm
Cutting insert height, Cutting insert thickness (s)
4.2
mm
Smallest bore diameter (Dmin)
9.8
mm
| Downloads | |
|---|---|
| L11P185903BA_20240205_212252410.DXF | Download |
| L11P185903BA.STP | Download |
| Download all files | |
