L360.2525.01

Toolholders

Material number L360252501

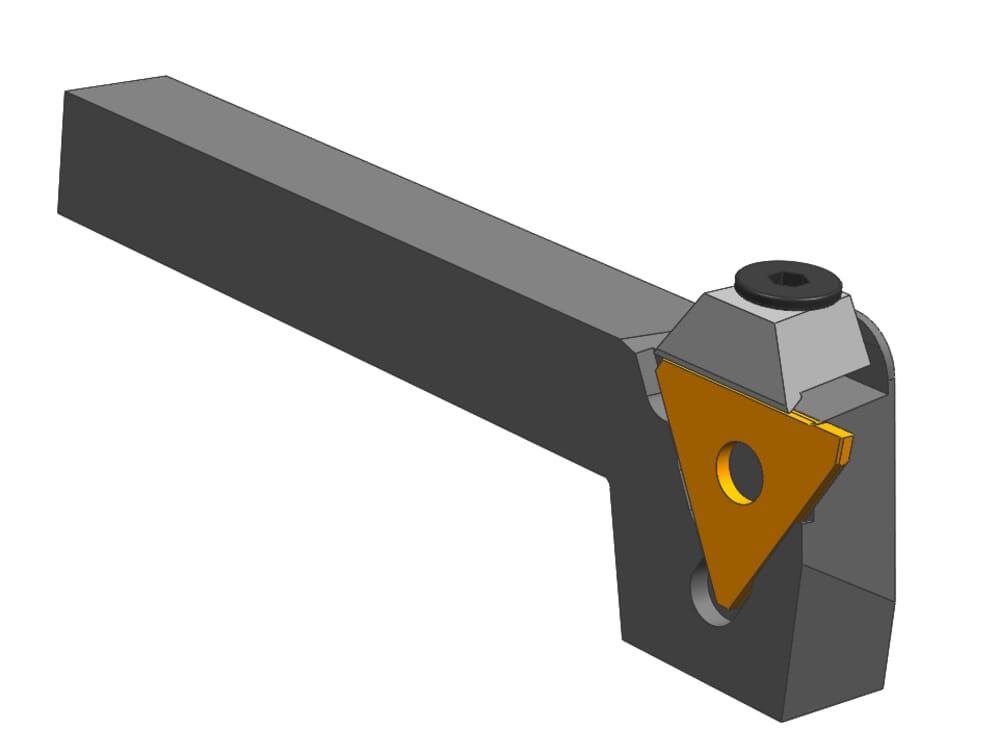

HORN Toolholders L360.2525.01 for Turning

Technical instructions

ISO_CCTWS

HORN-31201$000N$$$$$;HORN-31201$000R$$$$$;HORN-31201$000L$$$$$;HORN-31208$000N$$$$$;HORN-31211$000N$$$$$

Plating seat size (Größe)

ISO_CCTMS

VKT01A2525$$$$

DIN_CCTMS

VKT25250105

Katalog_CCTWS

31201N;31201R;31201L;31208N;31211N

DIN_CCTWS

HORN-31201000N;HORN-31201000R;HORN-31201000L;HORN-31208000N;HORN-31211000N

Shank width (b)

25 mm

Adjustment dimension locating face insert (f1)

23.5 mm

Adjustment dimension (formula) (f)

f1+w-a1

Clamping range maximum (Spannbereich)

1.9 mm

Clamping range minimum (Spannbereich)

0.5 mm

Peak height (h1)

25 mm

Maximum depth of groove (tmax)

4 mm

Shank height (h)

25 mm

Total length (including cutting insert) (l1)

150 mm
