LS116.0510.GM2 EG55
Insert
Material number LS1160510GM2EG55
HORN Insert LS116.0510.GM2 EG55 for Gewinden
DIN_SSC
HORN-11611084L

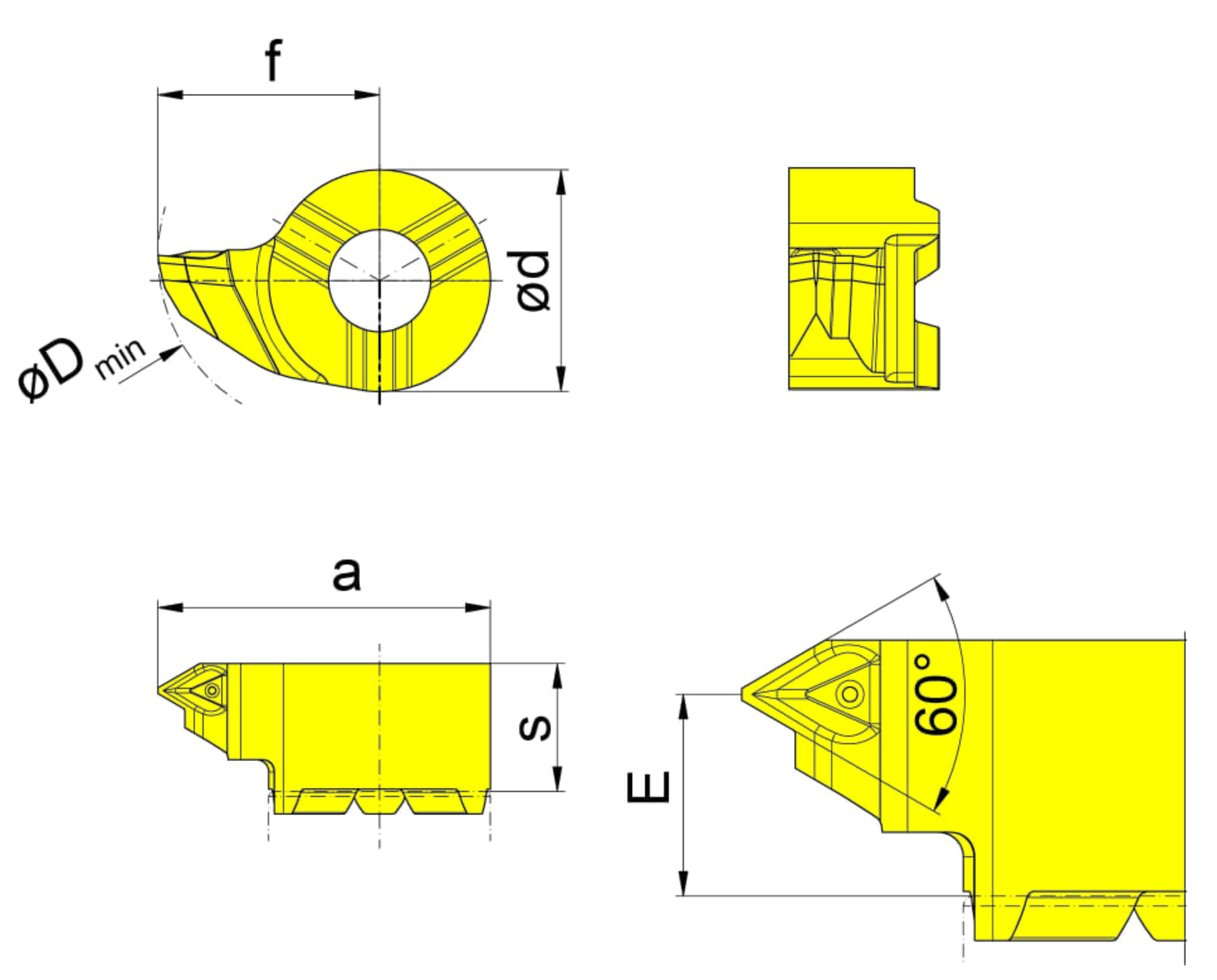

Pitch (P)
1
mm
Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.2
mm
Setting length (E)
4.1
mm
Tooth diameter, head diameter (d)
11
mm
Cutting insert width (a)
15.7
mm
Setting range radial (f)
10.2
mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
number-of-teeth
1
St.
| Downloads | |
|---|---|
| LS1160510GM2_20230113_114533844.STP | Download |
| LS1160510GM2.DXF | Download |
| Download all files | |
