M328.ST12.01B
Tooholder
Material number M328ST1201B

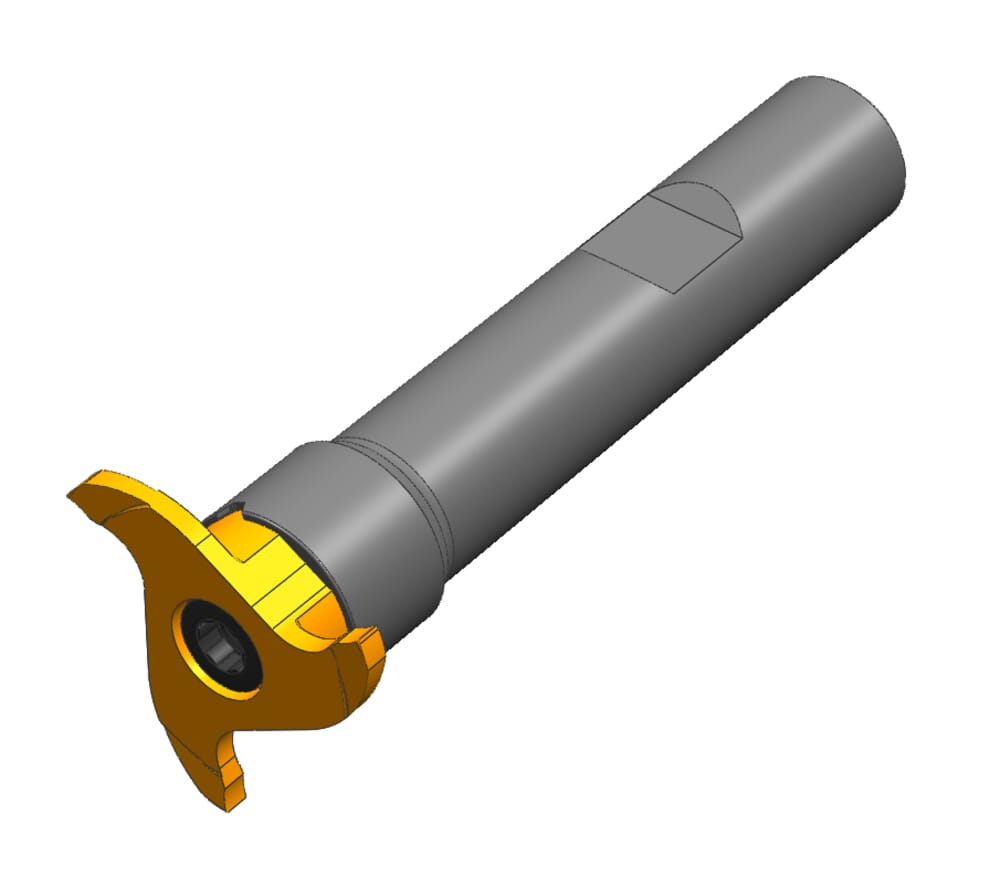

HORN Tooholder M328.ST12.01B for Milling
Shank diameter (d)
12 mm
ISO_CCTWS
HORN328143$84R$$$$$
DIN_CCTWS
HORN32814384R
Katalog_CCTWS
328143R
DIN_CCTMS
ZYL01201015
ISO_CCTMS
ZYL10G1200h$06
Neck diameter (d1)
14 mm
Total length insert (l1)
70 mm

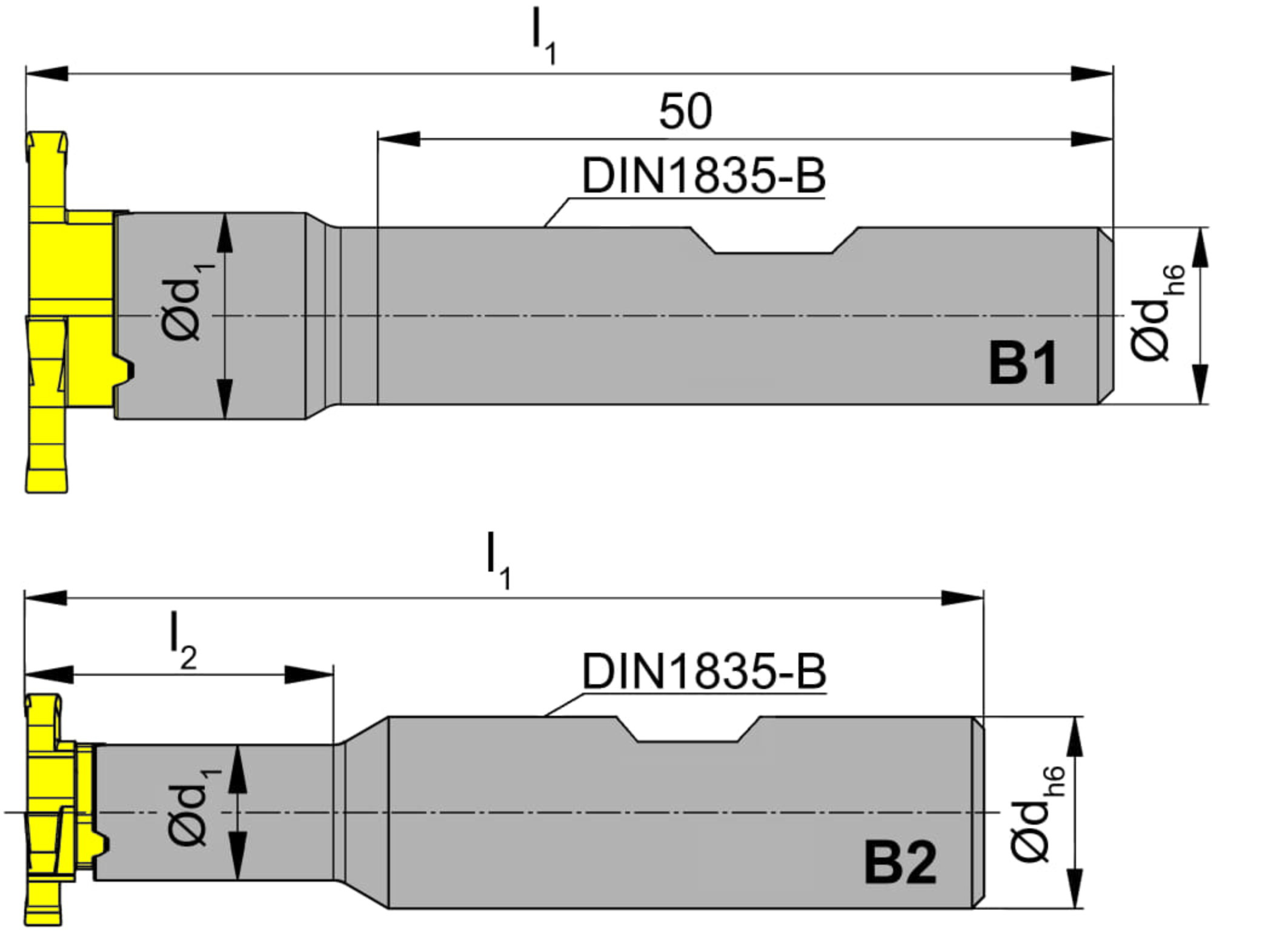

Form (Form)
B1
| Downloads | |
|---|---|
| M328_ST12_01B-DXF.DXF | Download |
| M328_ST12_01B-STP.STP | Download |
| M328_ST12_01B-ISO.XML | Download |
| M328_ST12_01B-DIN.XML | Download |
| Download all files | |
