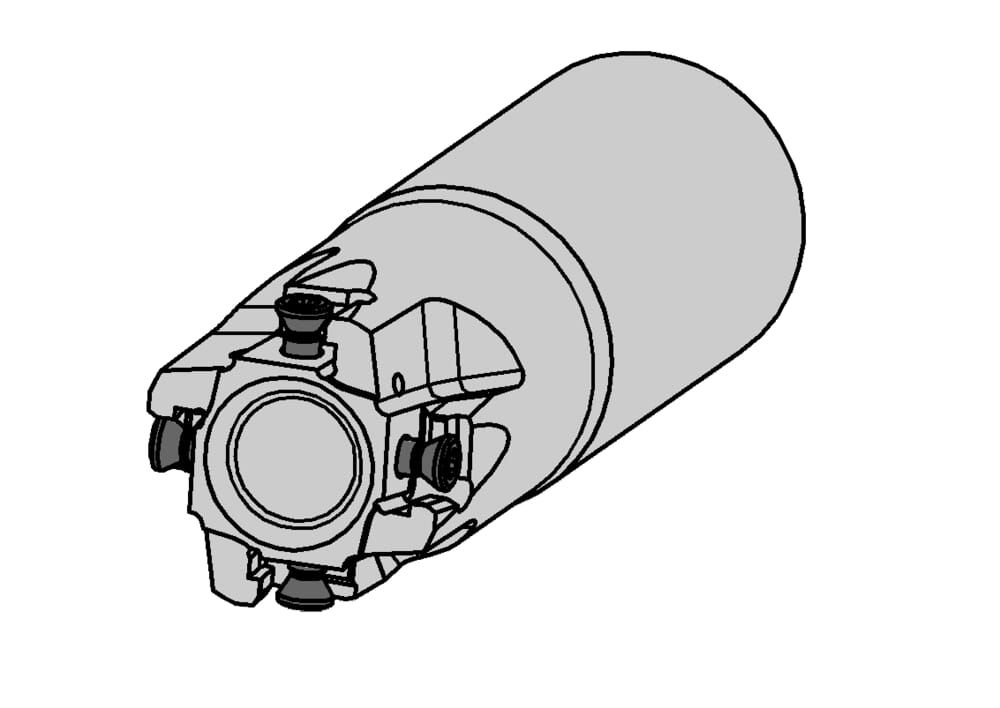

M409.032.D32.6.04A
Milling cutter shank
Material number M409032D32604A
HORN Milling cutter shank M409.032.D32.6.04A for Milling
Katalog_CCTWS
40900R
Number of revolutions maximum (nmax)
15600
Min-1

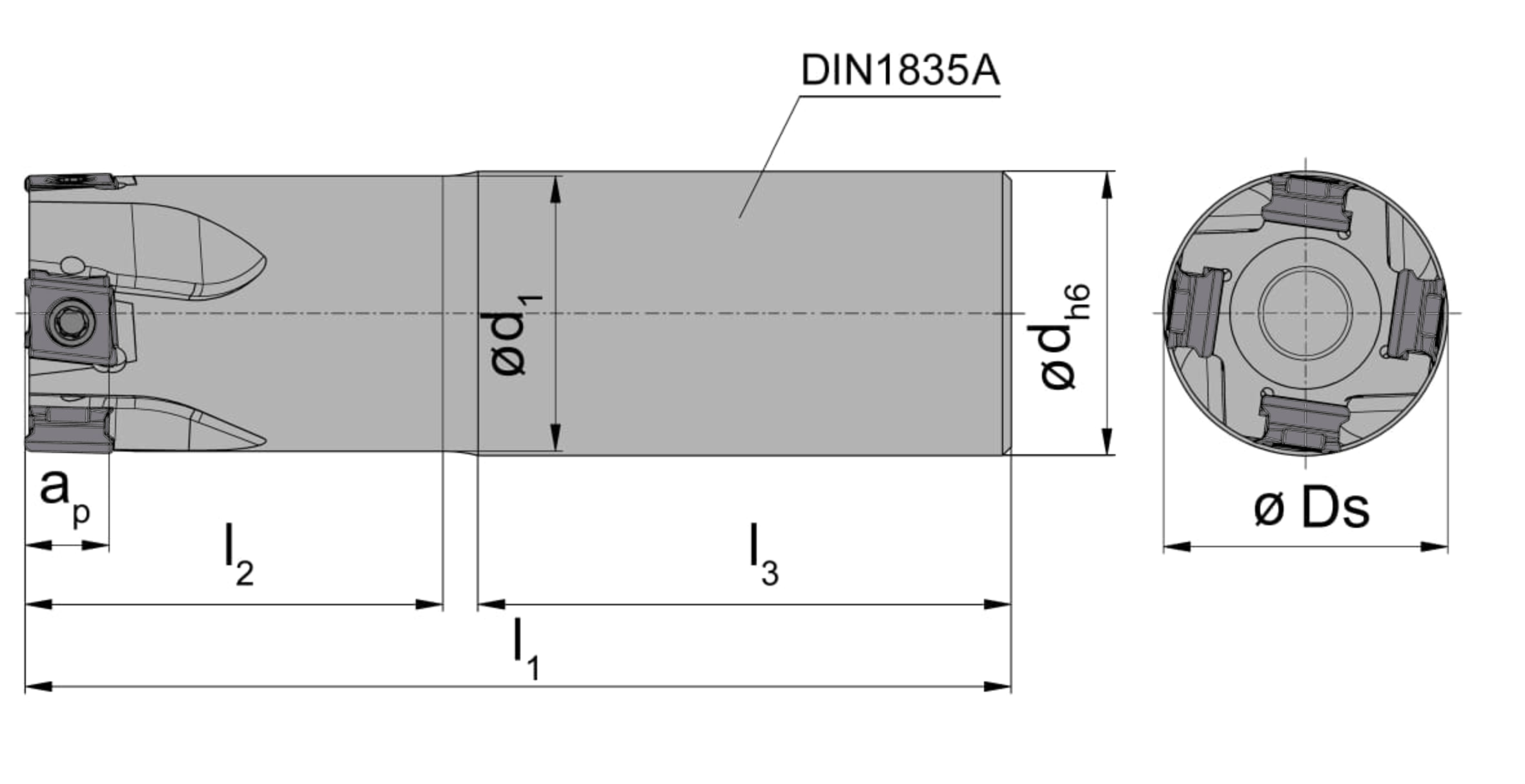

Tension length (l3)
60
mm
Form (Form)
A
Working length, Neck length, Extension length (l2)
47
mm
Total length insert (l1)
111
mm
cone-diameter-met
32
mm
Neck diameter (d1)
31
mm
Cutting depth (ap)
9.3
mm
ISO_CCTMS
ZYL01G3200h$06
DIN_CCTMS
ZYL03200115
DIN_CCTWS
HORN-409003R
ISO_CCTWS
HORN40900$$$3R$$$$$
Number of teeth (Z)
4
St.
Cutting diameter (Ds)
32
mm
Shank diameter (d)
32
mm
| Downloads | |
|---|---|
| M409032D32604A.DXF | Download |
| M409032D32604A_20240117_113055922.STP | Download |
| Download all files | |
