M409.040.18.D25.1.02.B

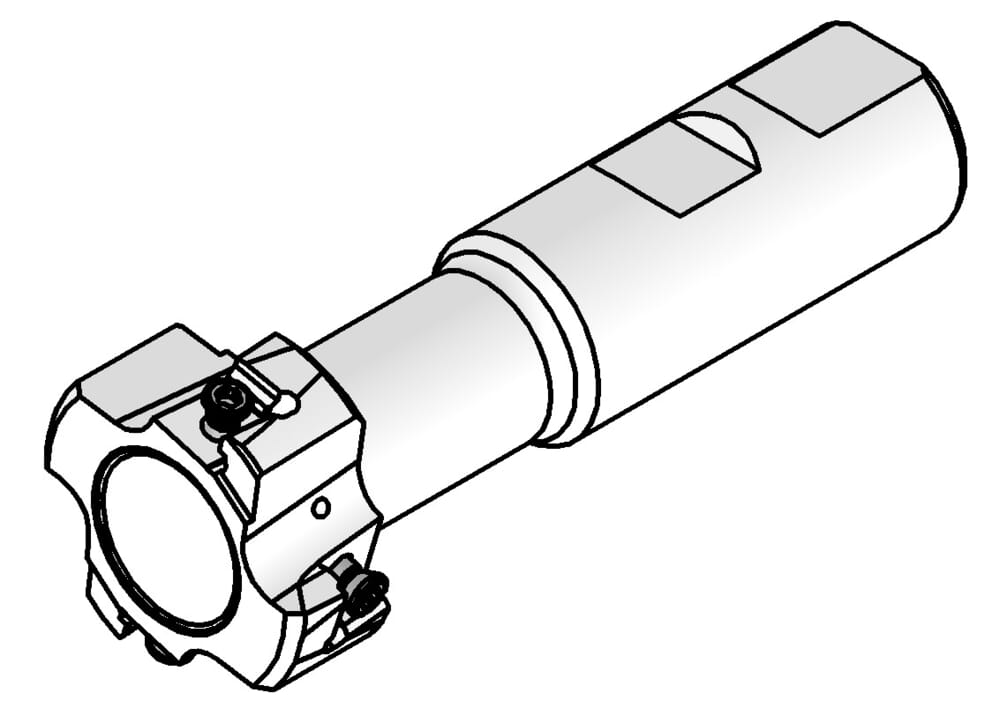

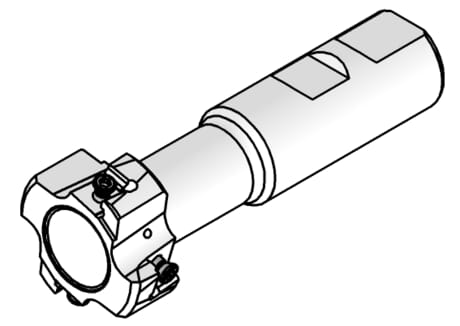

T-Slot cutter

Material number M40904018D25102B

HORN T-Slot cutter M409.040.18.D25.1.02.B for Milling

On Request

DIN_CCTMS

ZYL02501005

Number of revolutions maximum (nmax)

13900 Min-1

Size of groove (a)

20.9 mm

Maximum milling depth/ depth of groove (w)

18 mm

form

Working length, Neck length, Extension length (l2)

48 mm

Total length insert (l1)

109 mm

Neck diameter (d1)

20.4 mm

Left hand indexable insert (linke WSP)

2x L409.093.U...

Right hand indexable insert (rechte WSP)

2x R409.093.U...

Number of teeth effective (Zeff)

2 St.

ISO_CCTMS

ZYL10G2500h$06

Katalog_CCTWS

40900R;40900L

DIN_CCTWS

HORN-409003R;HORN-409003L

ISO_CCTWS

HORN40900$$$3R$$$$$;HORN40900$$$3L$$$$$

Number of teeth (Z)

4 St.

Cutting diameter (Ds)

40 mm

Shank diameter (d)

25 mm
