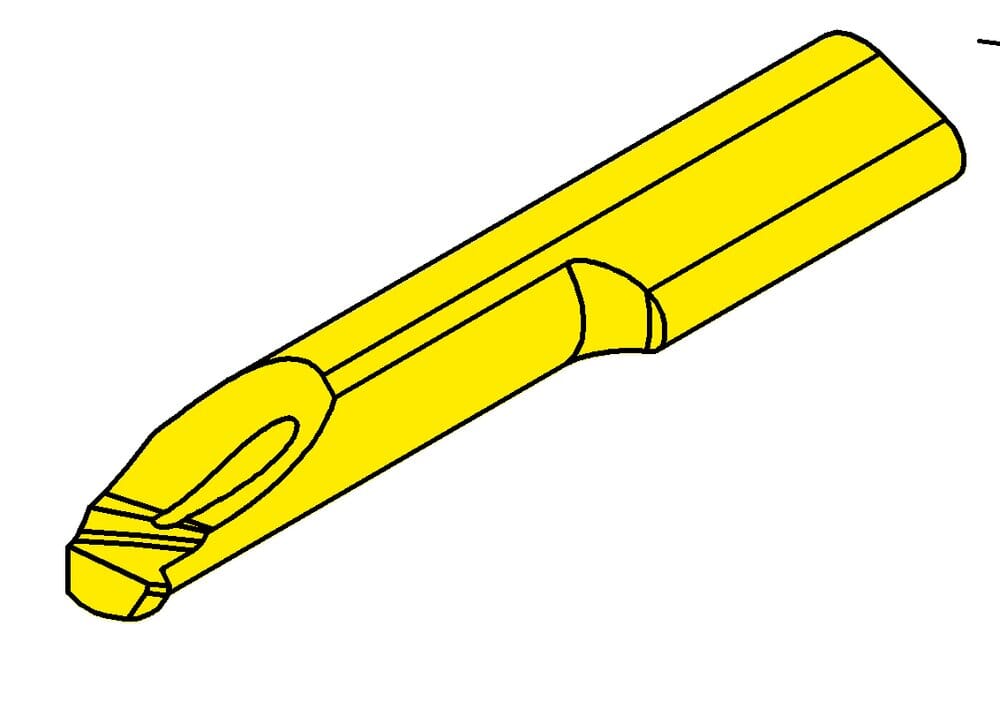

R105.0205.2.5 MG12
Inserts
Material number R105020525MG12
HORN Inserts R105.0205.2.5 MG12 for Gewinden
Setting range radial (f)
2.3 mm
Maximum pitch (Pmax)
0.5 mm
Pitch (P)
0.5 mm
Smallest bore diameter (Dmin)
5 mm
Setting length (E)
0.35 mm
Cutting insert width (a)
4.7 mm
Neck length (l2)
15 mm
Neck diameter (d)
3.5 mm
Katalog_SSC
105125
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
Cutting insert total length (l5)
30 mm
number-of-teeth
1 St.
| Downloads | |
|---|---|
| R105_0205_2_5_MG12-DXF.DXF | Download |
| R105_0205_2_5_MG12-STP.STP | Download |
| R105_0205_2_5_MG12-ISO.XML | Download |
| R105_0205_2_5_MG12-DIN.XML | Download |
| Download all files | |
