R106.1831.1.005 EG55
Insert
Material number R10618311005EG55

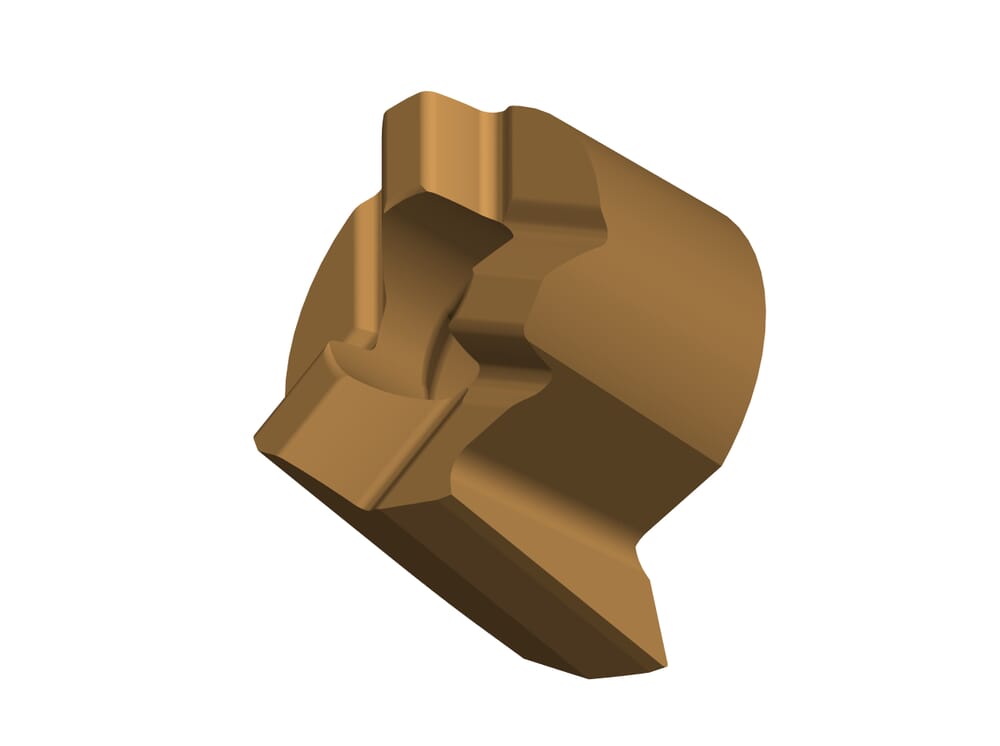

HORN Insert R106.1831.1.005 EG55 for Turning
Top radius (r)
0.05
mm
Head size (a)
5.4
mm
ISO_SSC
HORN106044$84R$$$$$
DIN_SSC
HORN-10604484R
Katalog_SSC
106044R
Setting range radial (f)
3.2
mm
Tooth diameter, head diameter (d)
4.4
mm
Cutting insert height, Cutting insert thickness (s)
2.8
mm
Smallest bore diameter (Dmin)
6
mm
| Downloads | |
|---|---|
| R10618311005_20230113_215047529.STP | Download |
| R10618311005_20210628_180629676.DXF | Download |
| Download all files | |
