R330.0025.K2
Toolholders
Material number R3300025K2

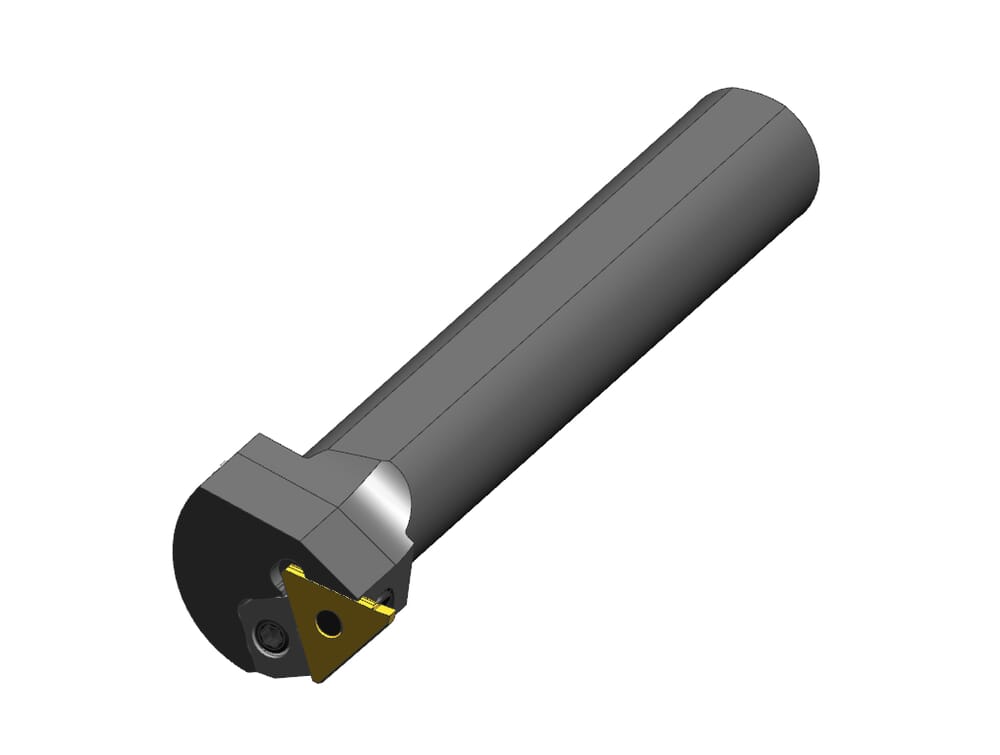

HORN Toolholders R330.0025.K2 for Turning
Peak height (h1)
11.5
mm
Working length (l2)
20
mm
Plating seat size (Größe)
2
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502305
Katalog_CCTWS
31202N;31202R;31202L
DIN_CCTWS
HORN-31202000N;HORN-31202000R;HORN-31202000L
ISO_CCTWS
HORN-31202$000N$$$$$;HORN-31202$000R$$$$$;HORN-31202$000L$$$$$
Clamping range maximum (Spannbereich)
2.9
mm
Clamping range minimum (Spannbereich)
1.9
mm
Shank, clamping diameter (d)
25
Insert width (s1)
2.5
mm
Minimum drilling diameter (Dmin)
46
mm
Total length (including cutting insert) (l1)
170
mm
Adjustment dimension from center (f)
20
mm
Shank width (b)
25
mm
Distance of clamping surface (s) (h)
23
mm
