R333.0025.03
Toolholder
Material number R333002503

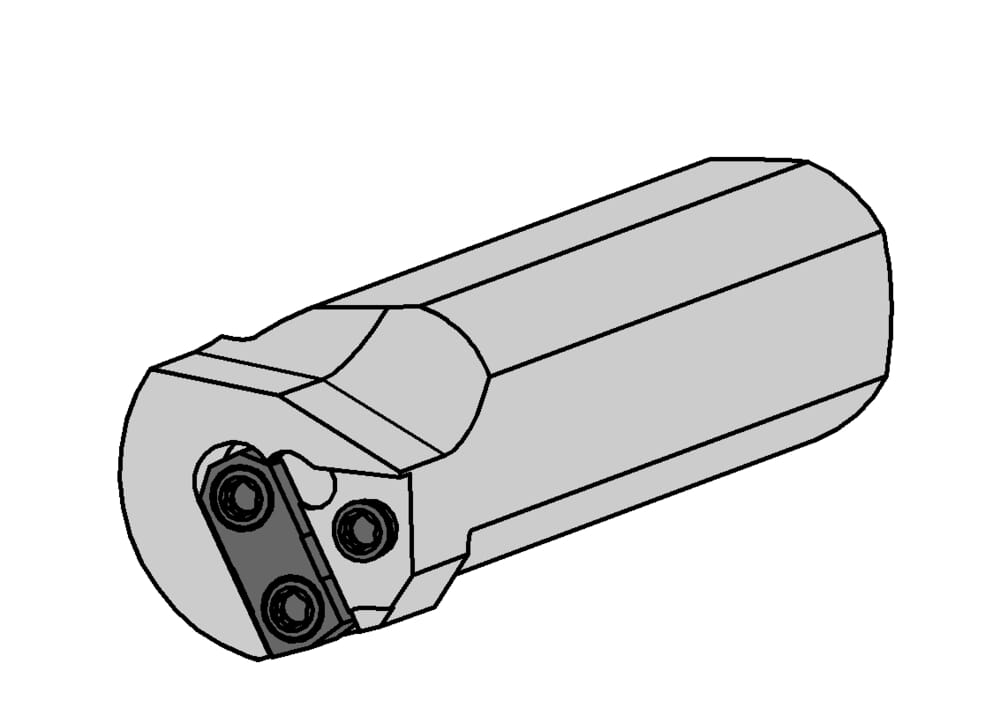

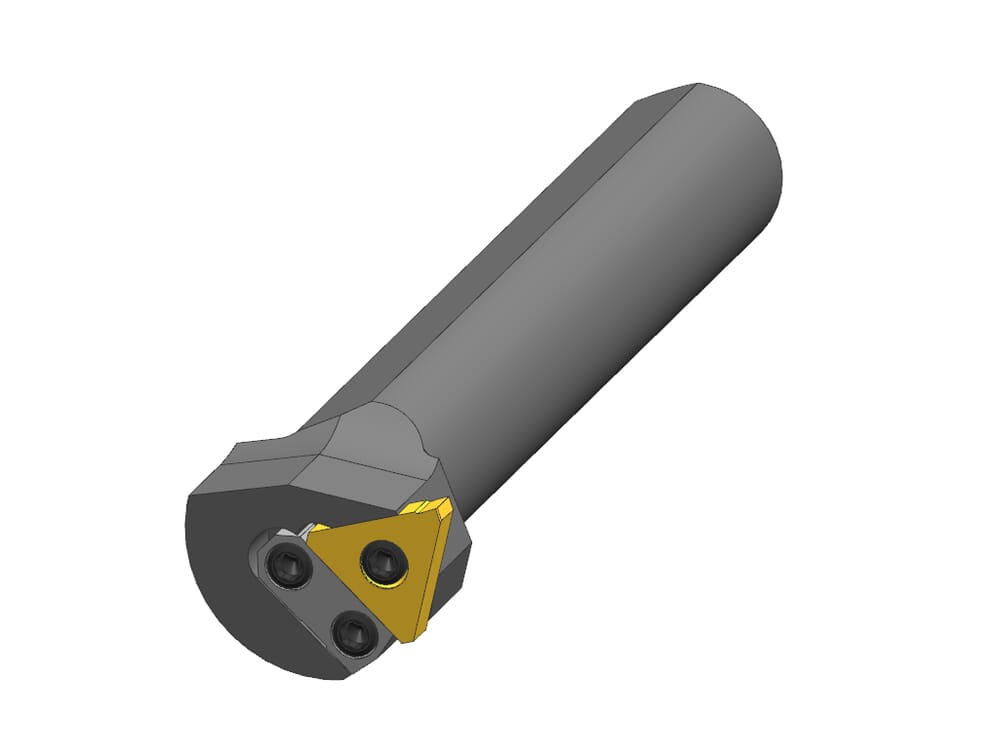

HORN Toolholder R333.0025.03 for Turning
ISO_CCTWS
HORN31503$051L$$$$$
Working length (l2)
20 mm
Plating seat size (Größe)
3
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502305
Katalog_CCTWS
31503L
DIN_CCTWS
HORN-31503051L

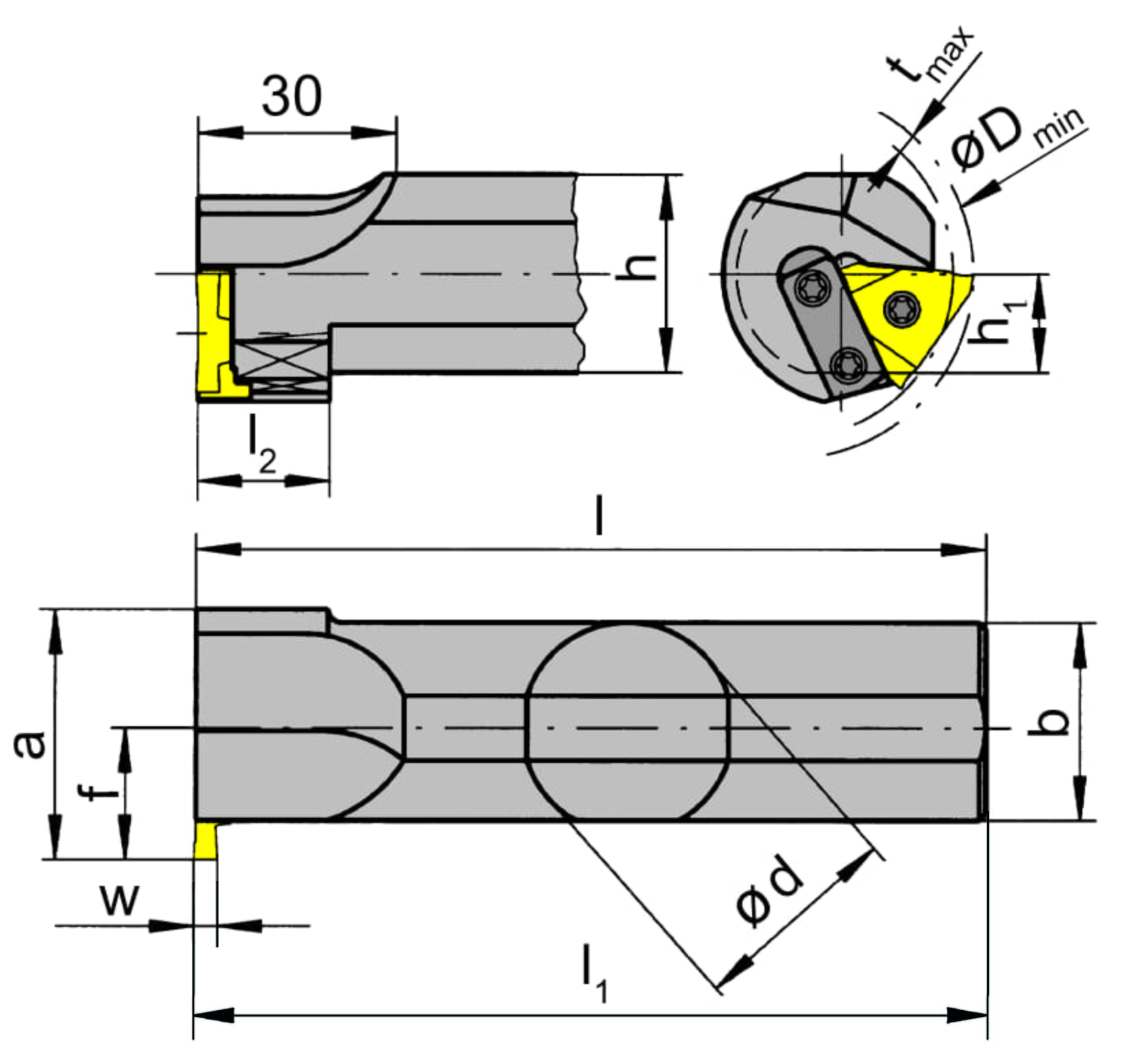

Distance of clamping surface (s) (h)
23 mm
Peak height (h1)
11.5 mm
Shank, clamping diameter (d)
25
Minimum drilling diameter (Dmin)
43 mm
Head size (a)
38 mm
Total length (without cutting insert) (l)
170 mm
Total length (including cutting insert) (l1)
170.3 mm
Adjustment dimension from center (f)
20 mm
Shank width (b)
25 mm
