313.0007.15 AS45
Insert
Material number 313000715AS45

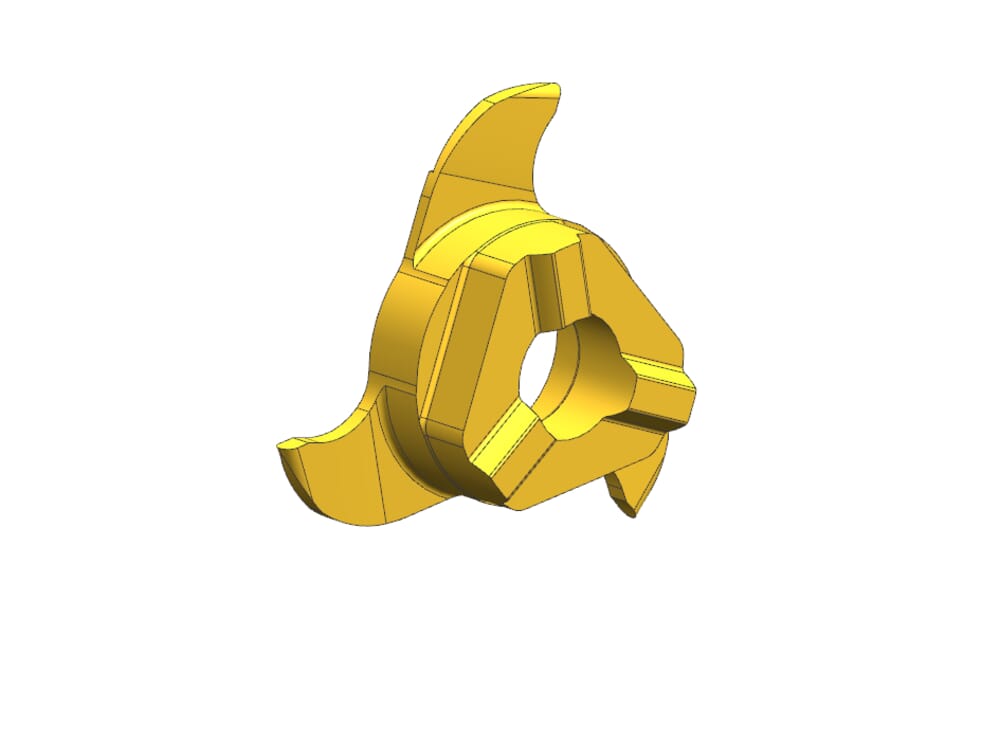

HORN Insert 313.0007.15 AS45 for Milling
Cutting diameter (Ds)
21.7 mm
Number of teeth (Z)
3 St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Width of groove (w)
1.5 mm
Maximum milling depth/ depth of groove (tmax)
4.5 mm
Cutting insert thickness, setting length complete (s)
5.7 mm
Radius, full-radius (r)
0.75 mm
| Downloads | |
|---|---|
| 313_0007_15_AS45-ISO.XML | Download |
| 313_0007_15_AS45-DIN.XML | Download |
| 313_0007_15_AS45-DXF.DXF | Download |
| 313_0007_15_AS45-STP.STP | Download |
| Download all files | |
