313.0090.00 TN35

Inserts

Material number 313009000TN35

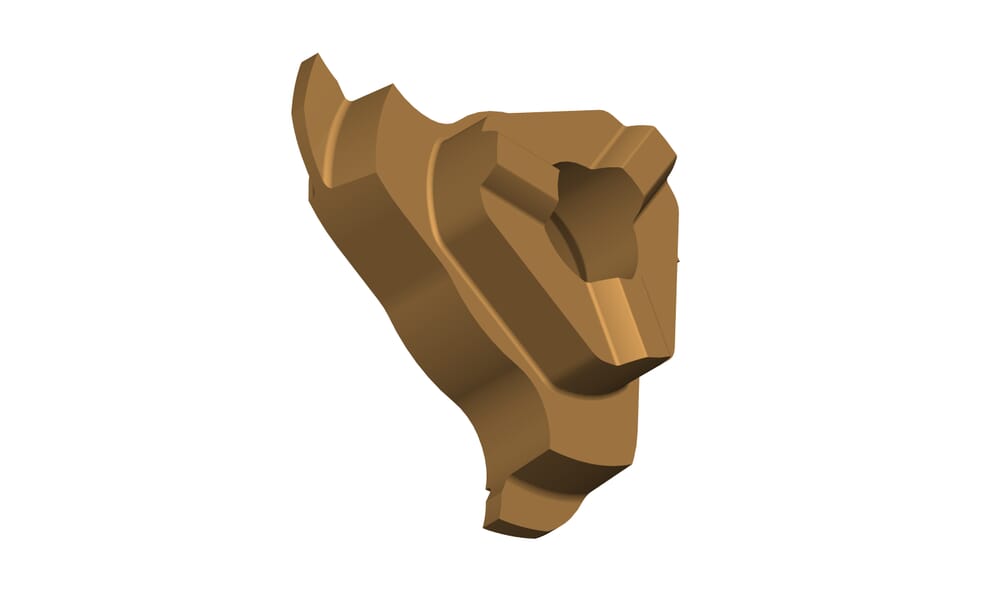

HORN Inserts 313.0090.00 TN35 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

0.97 mm

Maximum milling depth/ depth of groove (tmax)

1.9 mm

Nominal range (Nw)

0.9 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.6 mm
