313.0200.40 TI25
Inserts
Material number 313020040TI25

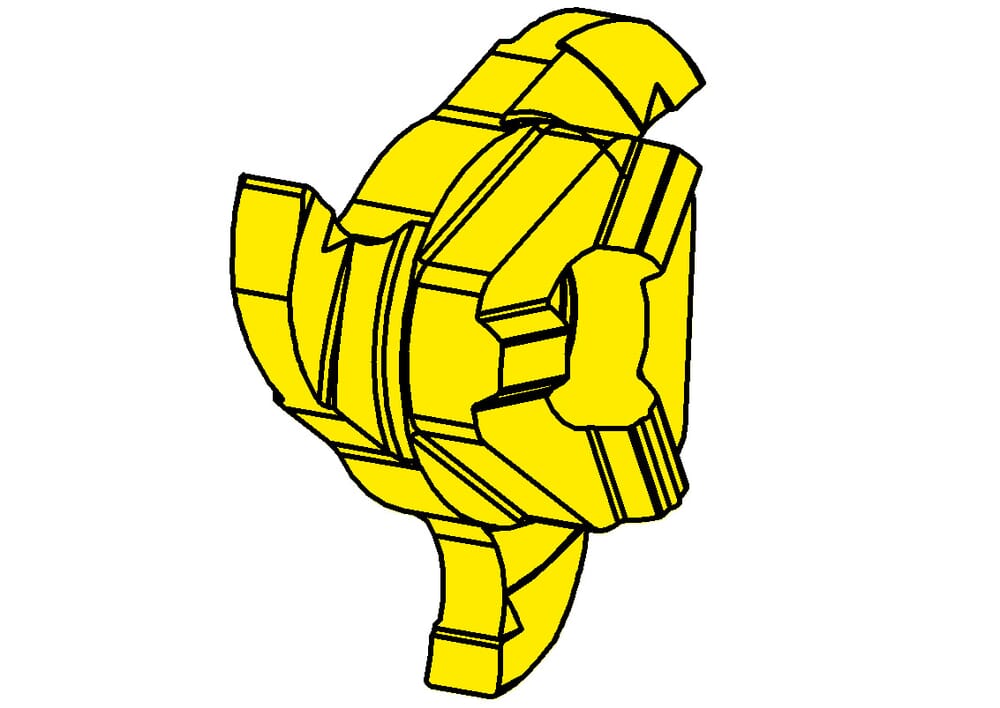

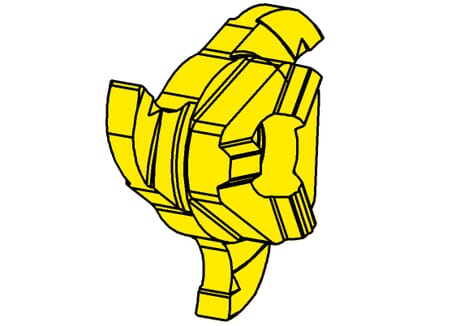

HORN Inserts 313.0200.40 TI25 for Milling
Cutting diameter (Ds)
21.7 mm
Number of teeth (Z)
3 St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
2 mm
Maximum milling depth/ depth of groove (tmax)
4.5 mm
Cutting insert thickness, setting length complete (s)
5.7 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| 313_0200_40_TI25-ISO.XML | Download |
| 313_0200_40_TI25-DXF.DXF | Download |
| 313_0200_40_TI25-STP.STP | Download |
| 313_0200_40_TI25-DIN.XML | Download |
| Download all files | |
