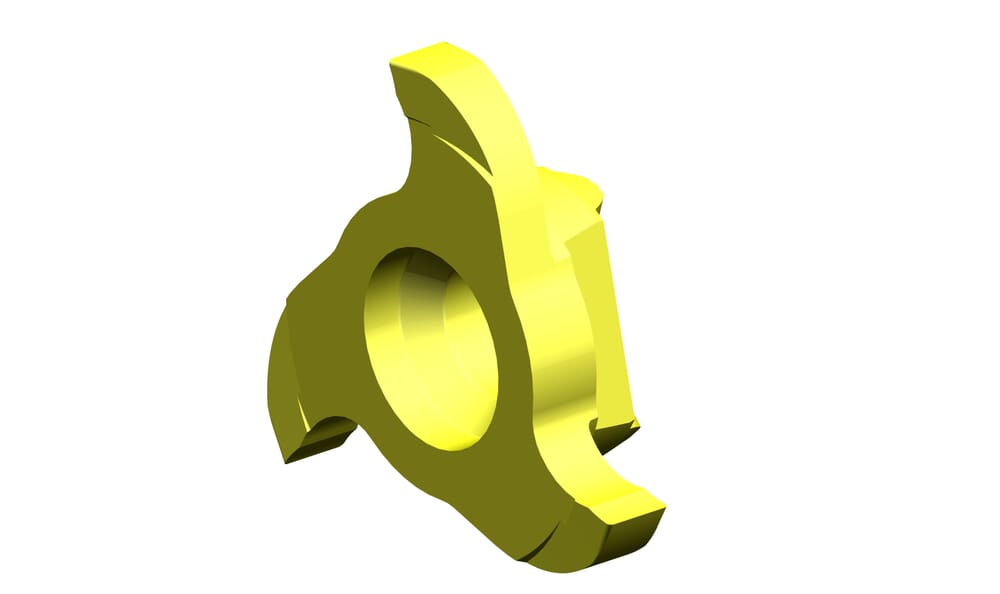

313.0265.00 EG55

Inserts

Material number 313026500EG55

HORN Inserts 313.0265.00 EG55 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

2.76 mm

Maximum milling depth/ depth of groove (tmax)

4.5 mm

Nominal range (Nw)

2.65 mm

Cutting insert thickness, setting length complete (s)

5.7 mm

Corner radius (r)

0.2 mm
