313.1812.35 EG55
insert
Material number 313181235EG55

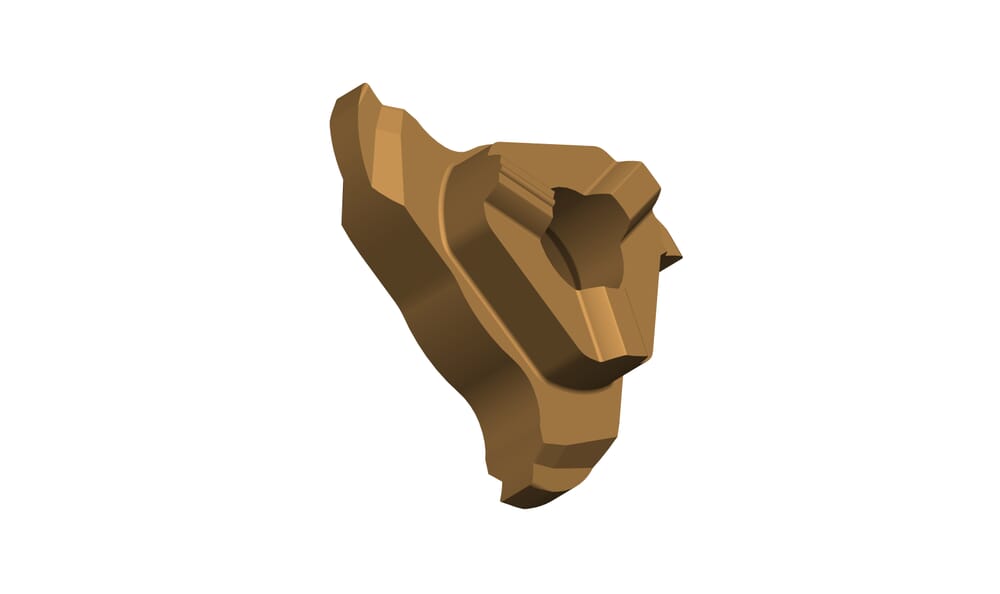

HORN insert 313.1812.35 EG55 for Milling
DIN_SSC
HORN31311384R
Corner radius (r)
0.2
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
5.19
mm
Cutting insert thickness, setting length complete (s)
5.9
mm
Nominal range (Nw)
1.85
mm
Milling depth without NAKF (t1)
1.21
mm
Maximum milling depth/ depth of groove (tmax)
1.25
mm
Width of groove (w)
1.96
mm
Katalog_SSC
313113R
ISO_SSC
HORN313113$84R$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 313181235_20230112_145902108.STP | Download |
| 313181235_20210625_160001704.DXF | Download |
| Download all files | |
