713.0200.00 TI25
Insert
Material number 713020000TI25

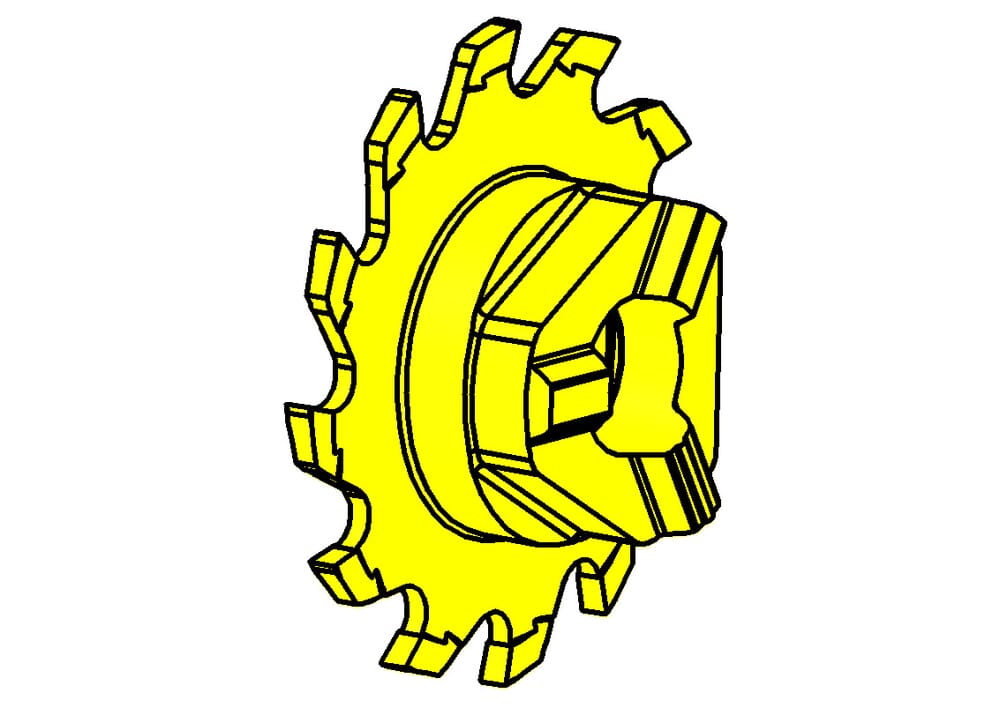

HORN Insert 713.0200.00 TI25 for Milling
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
12
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
2
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.9
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 713_0200_00_TI25-DXF.DXF | Download |
| 713_0200_00_TI25-STP.STP | Download |
| 713_0200_00_TI25-DIN.XML | Download |
| Download all files | |
