B105.0010.S.03
Toolholder
Material number B1050010S03

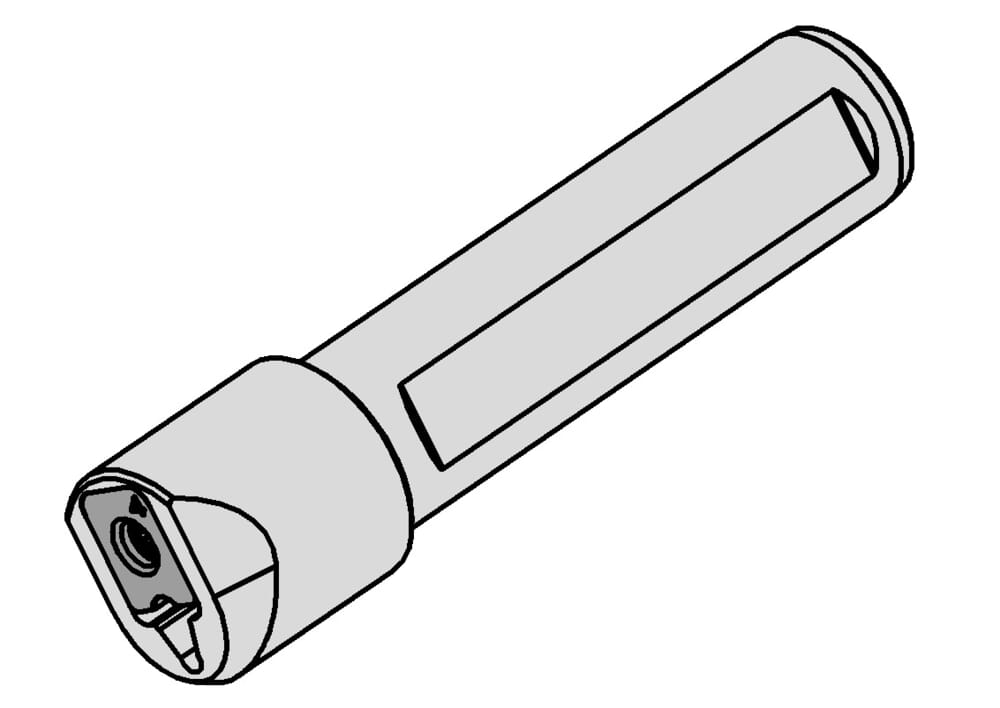

HORN Toolholder B105.0010.S.03 for Turning
Length of clamping surface(s) (l4)
50
mm
ISO_CCTMS
ZYL23G1000$$$$
DIN_CCTMS
ZYL01002315
Katalog_CCTWS
105123
DIN_CCTWS
HORN-10512395N
ISO_CCTWS
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Shank, clamping diameter (d)
10
mm
Head diameter (d1)
20
mm
Height clamping surface(s) (h)
9
mm
Total length (without cutting insert) (l1)
80
mm
Adjustment dimension (f1)
4.3
mm
